Automatic Glue Sealingc Facial Tissue Carton Box Packing Machine

Automatic Glue Sealingc Facial Tissue Carton Box Packing Machine

US$45,000.00 1 Set (MOQ)

Basic Info.

Model NO.
OPH SERIES
Certification
CE, ISO 9001:2000, ISO 9001:2008
Condition
New
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Tissue Packaging
Box
Function
Packaging
Tissue Type
Pull Out
Application
Facial Tissue,Cream Tissue,Napkin
After-Sales Sevice
Engineer Go to Install The Machine
Maximum Packing Dimensions
L240*W110*H100mm
Color
Customizable
Production Speed
Maximum150 Box/Minute
Machine Weight
About 1500kg
Transport Package
Wooden Crate
Specification
3975*3193*1928mm
Trademark
1PAPER
Origin
China
HS Code
84418000
Production Capacity
99999

Product Description


Scope of Application:
It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.
Five innovations of the machine
1.High output. The stable speed can reach 120 boxes/minute.
2.Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
3.Rapid production changing. It only takes 10-20 minutes to change the specifications.
4.Convenient operation. It is easy to control the servo paper feeding and PLC control system.
5.Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.
Product Description

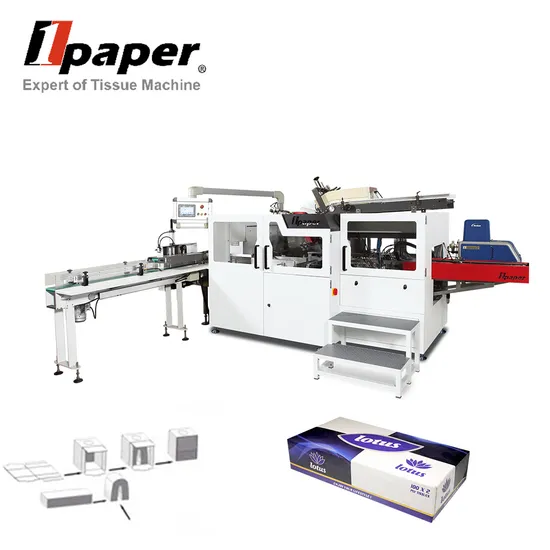

Automatic Facial Tissue Boxing And Sealing Machine
Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment Servo motor, touch screen, PLC control system

Product Parameters
Tem/model OPH SERIES
Packaging form box package
box paper thickness 250-350g
Packing specification Length 100-240mm
Width 80-120mm
Height 30-100mm
Maximum packing dimensions L240×W120×H100mm
Packing speed ≤150(bags/minute)
Hot melt machine power 2.32KW
Motor power 2.74KW
Total power 5.06KW
Power supply type Three-phase five-wire 380V 50Hz
Machine noise ≤80dB
Air supply 0.5-0.7 MPa
Air consumption 200-260L/min
Machine weight ≈1500Kg






Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
