Thickness 0.05mm to 0.3mm Copper Tape for Wires and Cables
| US$1.98-20.00 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
copper
Usage
Optical Fiber Cable, Data Cable, Telecom Cable
Waterproof
Waterproof
Color
Yellow
Thickness
0.05mm-0.3mm
Tensile Strength
More Than 180MPa
Elongation at Break
More Than 12%
Hardness
Hv 45-70
Cu+AG%
More Than 99.9%
Fe%
More Than 0.005
P%
More Than 0.003
Transport Package
Wooden Package
Specification
Customized
Trademark
Reliable
Origin
China
Packaging & Delivery
Package Size
1000.00cm * 10.00cm * 0.04cm
Package Gross Weight
20.000kg
Product Description

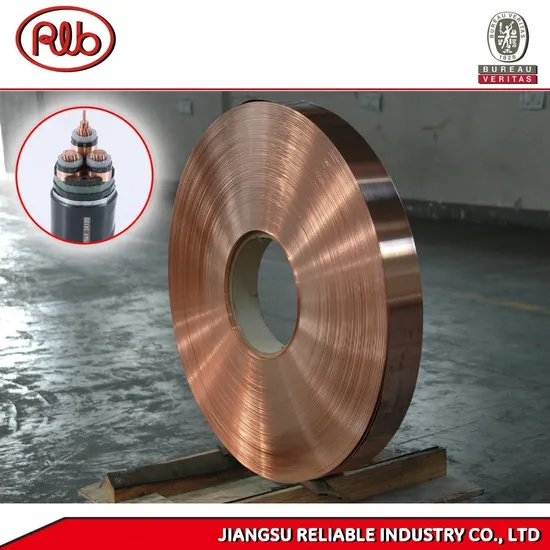

1,Product: Copper Tape1,Application:
It is widely used in the shielding layer of power cable.
2,Standard:
GB/T 2059-2000 BS EN 13599:2014
3,Package:
In coil and several coils in plywood box.
4,Technical Parameter:
| Thickness | Width | Tensile Strength | Elongation at break | Resistivity Max | Hardness | Grade | ||
| mm | mm | Min MPA | Min % | Ω*mm2/m | HV | |||
| 100%IACS | 98%IACS | |||||||
| 0.05-0.09 | ±0.004 | 10-100 | 180 | 12 | 0.017241 | 0.017593 | 45-70 | T2 |
| 0.10-0.20 | ±0.005 | 180 | 18 | 0.017241 | 0.017593 | 45-70 | T2 | |
| 0.20-0.3 | ±0.01 | 180 | 25 | 0.017241 | 0.017593 | 45-70 | T2 | |
| Chemical Composite | Cu+Ag% | Fe% | P% |
| ≥99.9 | ≤0.005 | ≤0.003 |
