US$10.00-20.00
|
1,000 Sets
(MOQ)
|
Basic Info.
Certification
CE, ISO, RoHS
Dimensions
245 X 290 X 95mm
Number of Splice Tray
6 PCS (Max)
Splices for Each Tray
12/24 F
Suitable Splitter
1X8 or 1X16 Micro PLC Splitter
Splices for Each Splitter Tray
6/12 F
Installation Methods
Wall Mount / Pole Mount
Production Capacity
10000 Sets/Week
Product Description
Application The FDB-T224B-24 Indoor/Outdoor FTTX Distribution Box is designed to provide robust and versatile solutions for fiber network management. It is suitable for both wall-mounted and pole-mounted installations, offering mechanical protection and efficient fiber organization in FTTX projects.

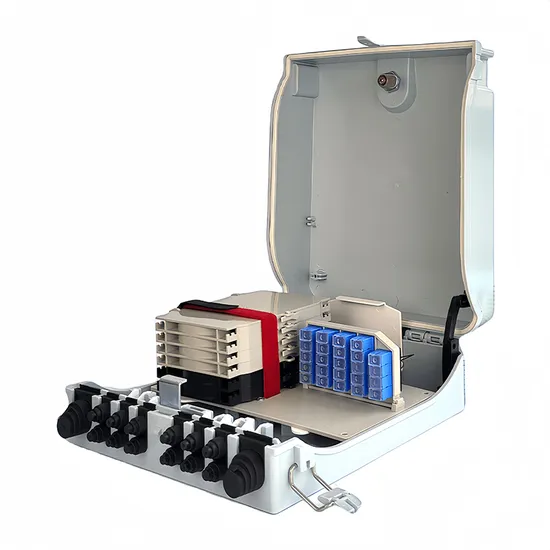

Product Description The FDB-T224B-24 Distribution Box combines durability and functionality with its IP55-rated PC+ABS housing, ensuring reliable performance in diverse environments. The box accommodates up to 24 SC adapters and supports both 1x8 and 1x16 micro PLC splitters. Its customizable design features a rubber gland for secure cable management and an adjustable cover that opens to 90 or 180 degrees, providing easy access during installation and maintenance. This box is ideal for high-capacity splicing, patching, and splitting applications in fiber networks.
Features & Benifits High Capacity: Supports up to 24 SC adapters and 144 fusion splices across 6 trays. Durable Construction: Made from PC+ABS material with an IP55 rating for indoor and outdoor use. Splitter Compatibility: Suitable for 1x8 and 1x16 micro PLC splitters. Flexible Cable Management: Includes 12 drop cable ports and 2 main cable entry ports with rubber sealing. Adjustable Cover: Opens to 90 or 180 degrees for convenient access. Secure Access: Can be equipped with a lock or used in non-lockable configurations. Versatile Installation: Supports wall-mounted or pole-mounted setups. Detailed Photos Specification
Part No. | FDB-T224B-24 |
Dimension | 245 x 290 x 95mm |
Protection Class | IP54 |
Main Cable Ports | 2 |
Drop Cable Ports | 12 |
Fusion Splice | 144 FO |
Number of Splices Tray | 6 PCS |
Number of Adapter | 24 SC |
Suitable Splitter | 1:8 or 1:16 PLC Micro Splitter |
Mount Way | Wall-mounted / pole-mounted |
Packaging & Shipping
Part No. | Description | Carton Size | Carton Gross Weight | Carton Capacity |
FDB-T224B-24 | Standard accessories, no adapters nor pigtails | 53*35*40CM | 10.5KG | 6 PCS/CTN |
