US$0.51-0.79
|
5 Pieces
(MOQ)
|
Basic Info.
Production Capacity
2, 000, 000PCS/Month
Product Description
PRODUCT DESCRIPTION

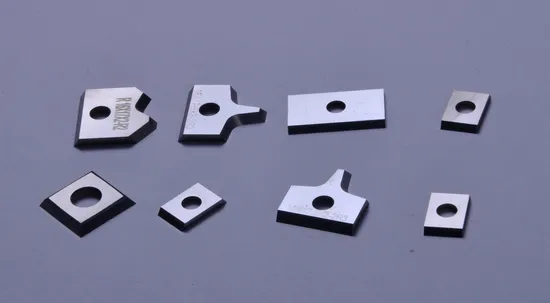

Our Long wearing tungsten carbide reversible blades are offered in dozens of standard sizes with two or four wear edges, these carbide inserts are the perfect choice for running woods such as Teak, Hard Maple,Ipe and MDF.Mounted on the cutterhead for planer, jointer, sharpers and moulders, the carbide reversible blades are widely used for the wood working industry.
Machine: Edge bander, installed on the helical cutter body.
Application:MDF, density boards edge trimming.
ADVANTAGES
1. Material: 100% virgin raw material with submicron grain size
2. Grade: Various grades for choice
3.Advanced production equipments and testing equipments
4. Precision Ground and polished
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , automatic pressing , HIP sintering and precision grinding
7. Samples & small orders are acceptable.
SPECIFICATION
Product Name | Length | Width | Thickness |
Indexable Carbide Inserts | 7.5 | 12 | 1.5 |
Indexable Carbide Inserts | 9.6 | 12 | 1.5 |
Indexable Carbide Inserts | 12 | 12 | 1.5 |
Indexable Carbide Inserts | 14 | 14 | 2 |
Indexable Carbide Inserts | 15 | 12 | 1.5 |
Indexable Carbide Inserts | 15 | 15 | 2.5 |
Indexable Carbide Inserts | 20 | 12 | 1.5 |
Indexable Carbide Inserts | 22 | 19 | 2 |
Indexable Carbide Inserts | 25 | 12 | 1.5 |
Indexable Carbide Inserts | 30 | 12 | 1.5 |
Indexable Carbide Inserts | 40 | 12 | 1.5 |
Indexable Carbide Inserts | 50 | 12 | 1.5 |
Indexable Carbide Inserts | 60 | 12 | 1.5 |
Indexable Carbide Inserts | 20 | 12 | 2R2/R3 |
Indexable Carbide Inserts | 16 | 17 | 2R2/2R3 |
Indexable Carbide Inserts | 16 | 17 | 2R2 L/R |
Indexable Carbide Inserts | 16 | 17 | 2R3 L/R |
Note: Other size can be customized as your requirement.
