Essential Oil Nitrogen-Containing Alkaloids Distillation Equipment

Product Description

High quality high efficiency bamboo jasmine essential oil extraction machine Product Description

This set of equipment to extract the essential oil of process is by steam distillation method, steam and entered from the top of the export of oil and gas condensate in the condenser, because oil relative density is lighter than water, so it will float on the surface of the water, separated by this method The machine can realize three distillation method: Distillation in water,distillation on water (impermeable distillation), steam distillation

Model	TQ-100
Power	(kw)	9
Pressure	(MPa)	Atmospheric pressure
Distillation temperature	ºC	100
Steam consumption	(kg/h)	12.5
Body size	(mm)	500x750x4
Overall dimensions	(mm)	1200x700x2200
Steam pipe diameter	DN	20
Discharge pipe diameter	DN	32
Inlet pipe diameter	DN	20
Feed water pump power	(w)	300

Model	TQ-300
Power	(kw)	24
Pressure	(MPa)	Atmospheric pressure
Distillation temperature	ºC	100
Steam consumption	(kg/h)	33
Body size	(mm)	700x800x4
Overall dimensions	(mm)	1500x800x2300
Steam pipe diameter	DN	25
Discharge pipe diameter	DN	32
Inlet pipe diameter	DN	15
Feed water pump power	(w)	300

Model	TQ-500
Power	(kw)	36
Pressure	(MPa)	Atmospheric pressure
Distillation temperature	ºC	100
Steam consumption	(kg/h)	50
Body size	(mm)	800x1000x5
Overall dimensions	(mm)	2000x2000x2500
Steam pipe diameter	DN	25
Discharge pipe diameter	DN	32
Inlet pipe diameter	DN	25
Feed water pump power	(w)	750

Advantage

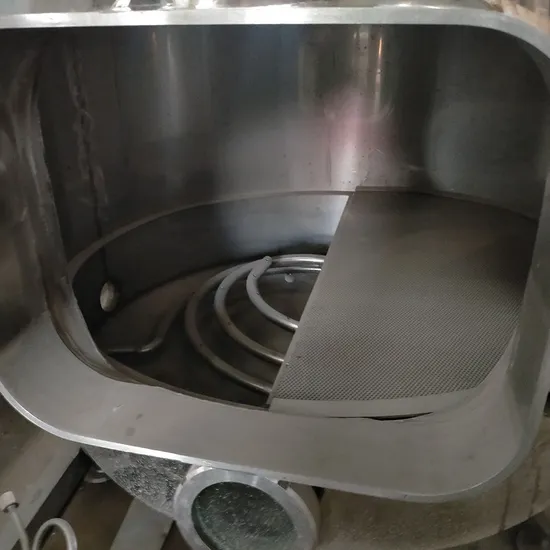

1.Stainless steel extraction basket, corrosion resistant & easy to clean
2.Crane system to make sure easier operation and less labor, automatic lifting is optional.
3.Automatic control, operation is simple and flexible, and one person can easily complete the entire production.
4.Lab grade glass pipeline diameter < 20mm, special-structured oil-water separator is used to facilitate the separation and collection of essential oils.
5.The lid of extraction tank is quick-opening design, easy to open & close lock.
6.Ball valve design, continuous operation
7.Lab - pilot - industry customization with greatest flexibility
Process
1.Charging plant materials + water into essential oil extracting tank.

2.By steam distillation or water distillation, the steam passes through plants material and vapourises oil.
3.Mixtures of steam and oil vapors go into condenser ( chilling unit ).
4.After cooling, mixture of steam and oil vapours formed.
5.Separation of oil and water by separator.
6.Achieve essential oil.
7.Dregs discharging Related Products
