Stone Sawing Cutter Automatic 4 Aix 5 Aix Chamfering Mitre Used Granite Marble Tile Slab CNC 4+1 Stone Cutting Bridge Saw Machine

Stone Sawing Cutter Automatic 4 Aix 5 Aix Chamfering Mitre Used Granite Marble Tile Slab CNC 4+1 Stone Cutting Bridge Saw Machine

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
IGS-B
Type
CNC Cutting Machine
Usage
Ceramics, Glass, Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Keywords
Bridge Saw CNC Stone Cutting Machine
Working Area
3000*2000*350mm
Table Size
3000*2000mm
Spindle Power
4.5kw
Table Structure
T-Slot
Driving Motor
Servo Brand
Working Speed
8m/Min
Repositioning Accuracy
0.05mm
Control System
Special CNC Control System
Transmission
X/Y Rack and Pinion, Z Ball Screw
Spindle
Water Cooling Spindle and Cutters
Key Selling Points
High-Accuracy
Spindle Speed
24000r/Min
Transport Package
Plywood Case
Specification
3000*2000*350mm
Trademark
iGoldencnc
Origin
China
Production Capacity
500

Product Description

Product introduction

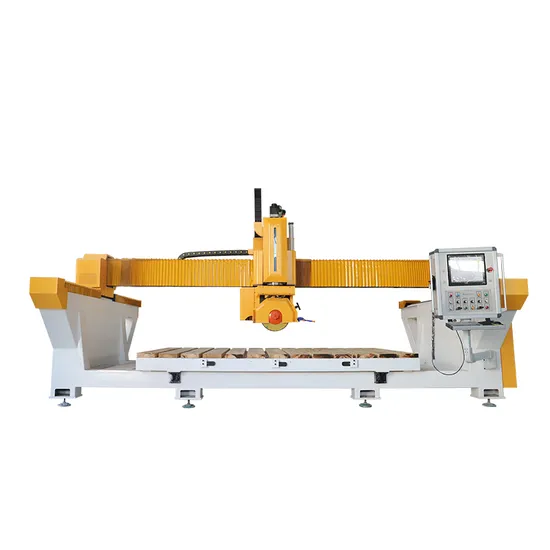

The Intelligent 4+1 bridge cutter is a fully functional processing equipment with a 360 degree rotation of the head. Saw blade with spindle can be cut, chamfering, digging and other multi-functional integration, intelligent operating system, simple and easy to learn; High quality motor, high precision, fast speed; Transverse, longitudinal, arc, circular, arbitrary Angle, shape cutting. The machine head can move and rotate freely. In addition to cutting modeling, it can also be used for large plate opening, 45 degree chamfering, opening basin hole, stove hole, oblique line cutting.
Suitable for quartzite, rock plate, artificial stone, granite, marble all kinds of large and small stone decoration engineering stone processing machinery. Save plate save time save worry save effort!

Technical
indicators
parameter
Configuration 1 Configuration 2
Model iGS-B3220 iGS-B3320
Control system WEIHONG + WEIHONG motor Cutcam+VEICHI motor
Spindle 4.5kwWater cooling
Optional power 15kw/18.5kw/22kw
Saw blade diameter 350/400mm 350/400/450mm
Lathe bed Heavy duty welded bed
Table Flip table
Gantry Steel structure
Rack High density diagonal rack
Guide rail 30 guide rail
Input power 3 . 380V/220V 50-60Hz 10A
Standard function Handle; Rely on the ruler; A hand wheel; Balancing cylinder; Rely on the ruler; blanking
Optional function Motor power;Spindle power;Shift, Dust-free mounting measurement software Motor power;Spindle power;Camera, Shift, Dust-free mounting measurement software
