Quick-Charging 5.5 Inch Handheld Android 10 Industrial Data Terminal PDA
| US$20.00-268.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
OCBS-C6
OS
Android
Memory Capacity
≥1GB
Applications
Industrial Grade PDA
CPU Type
Cortex A73 2.0GHz Octa-Core
Internet Connection
Dd-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3,
Classification
Ultra High Frequency
Dimension
170.8mm(H)X81mm(W)X20.4mm(D)±2 mm
Weight
Net Weight :360g (Including Battery&Wrist Strap)
Display
Tough 5.5 Inch TFT-LCD(720X1440)Touch Screen with
Expansions
2 *Psam, 2* SIM, 1* TF
Battery
Rechargeable Li-ion Polymer, 3.8V, 4800mAh
Operating System
Android 10.0
Storage
4gbram, 64GB ROM, Micro SD up to 256GB for Option
Transport Package
1box
Specification
Default: Android 10 4G RAM+64G ROM +WIFI+BT+4G+GPS
Trademark
OCOM/NEUTRAL/OEM
Origin
Shenzhe, China
Production Capacity
1000PCS/Week
Product Description

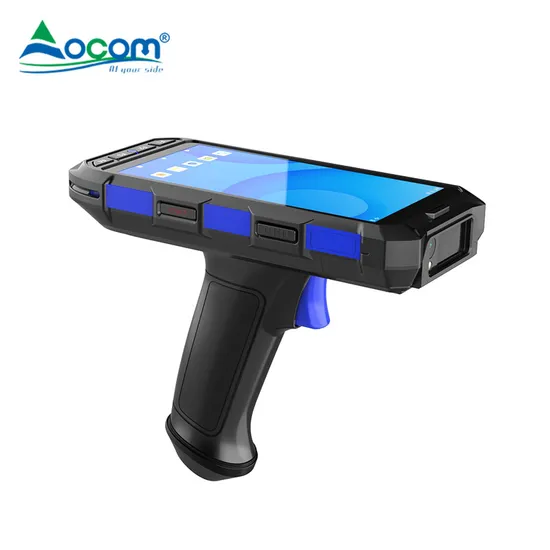

Handheld Android Industrial Data Terminal(M/N:OCBS-C6)Features:
OCBS-C6 is an Android OS10.0 device that supports 4G high-speed network communication. Inside the compact handheld device, IP65 water/dust seal rating, 1.5m/4.5ft drop resistance, ergonomic design, over-molding construction, fast charging technology, tough 5.5-inch Gorilla Glass 3 screen for performance. The latest Octa-Core processor 4GB RAM/64GB ROM ultra-high memory, the best choice for outdoor industrial applications
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 170.8mm(H)x81mm(W)x20.4mm(D)±2 mm | |
| Weight | Net Weight :360g (including battery&wrist strap) | |
| Display | Tough 5.5 inch TFT-LCD(720x1440)touch screen with backlight | |
| Backlight | LED backlight | |
| Keypads | 3 TP keys, 4 function keys, 4 side buttons | |
| Expansions | 2 *PSAM, 2* SIM, 1* TF | |
| Battery | Rechargeable li-ion polymer, 3.8V, 4800mAh | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Cortex A73 2.0GHz octa-core | |
| Operating System | Android 10.0 | |
| Storage | 4GBRAM, 64GB ROM, Micro SD up to 256GB for option | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20ºC to 50ºC | |
| Storage Temp. | -20ºC to 70ºC | |
| Humidity | 5%RH to 95%RH(non-condensing) | |
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | |
| Sealing | IP65, IEC compliance | |
| ESD | ±15kv air discharge, ±8kv direct discharge | |
| DEVELOPMENT ENVIRONMENT | ||
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5, 7, 8, 12, 17, 20 WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); | |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 | |
| GPS | GPS(embedded A-GPS), accuracy of 5 m | |
| DATA CAPTUER | ||
| BARCODE READER(OPTIONAL) | ||
| 2D bar code | Honeywell N5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1 | |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | |
| COLOR CAMERA | ||
| Resolution | Rear 13 megapixel, front 5.0 megapixel | |
| Lens | Auto-focus with LED flash | |
| RFID READER(OPTIONAL) | ||
| RFID NFC | Frequency | 13.56MHz |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | |
| R/W Range | 2cm to 5cm | |
| ACCESSORIES | ||
| Standard | 1xPower Supply; 1xLithium Polymer Battery,1xUSB data cable | |
| Optional | Cradle | |
