High-Quality Estop Twin Head Duplex CNC Milling Machine Th-850nc

Product Description

Es Top: Professional made the excellent machine.

ESTOPCNC is a manufacturer, distributor and exporter of industrial master machinery and CNC machine tools in China. The company is headquartered in Dongguan city, Guangdong Province. Company by a group of in Taiwan and mainland China engaged in more than 20 years of CNC milling machine manufacturing engineers, maintenance technicians, relying on the powerful world factory location advantage and talent advantage, constantly promote the shift to China smart upgrade, made in China to intelligent manufacturing in China. Cost-effective milling machine, grinding machine, gantry processing center and other CNC machinery and equipment to the international market.
ESTOPCNC in the form of diversified, intelligent response to changing market environment, from the introduction of advanced technology, digestion and absorption innovation, to fully replace imported Japan, Taiwan machine tools, in domestic application, and after ten years of precipitation and accumulation, reverse exports to Japan, Taiwan province, North America, Europe and southeast Asia and the Middle East countries, combined with professional management operation system and professional international after-sales service team, won the user's praise and affirmation.
We will continue to bring you high quality and a variety of machining center equipment. Single-minded, do a good job of machinery, good service hexahedral processing, that is, the perfect quality and excellent global after-sales service!
Product Description
Dongguan ESTOP Machinery Co., Ltd.
Model: TH-850NC

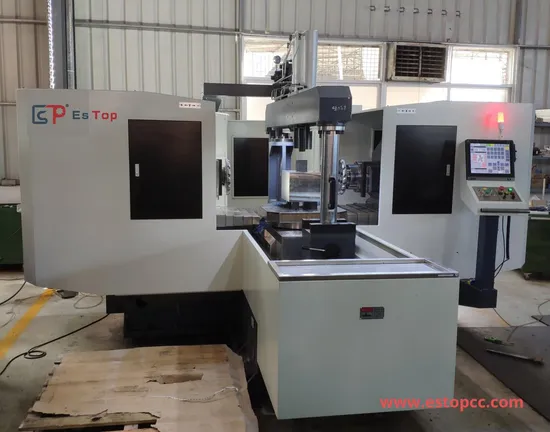

ESTOP CNC Vertical Milling Machine for Precision Engineering TH-850NC
The ES-TOP series of duplex milling machines make it simple to machine precision angles and dimensions on blocks and plates for any application.
Easy to use input screen for parameters.
Once the cycle is complete, the clamps retract and the finished part can be removed and replaced with the next.
Learn from Japan's mature technology, continuously summarize and improve through long-term operational practice, develop and improve various functions, make it easier to operate, safer and faster.
Product Parameters
Specification

Specifications of TWIN-HEAD CNC MILLING MACHINE TH-850NC
Items	Name	Specification
TWIN-HEAD CNC MILLING MACHINE TH-850NC		TH-850NC
Cutting capacity	Control axis number	4
	Cutting capacity mm	2*3
	Cutting width mm	60-850
Worktable	Dimensions mm	600*600
	Max loading weight KG	2000
Spindle	Spindle speed(Infinitely variable speeds) rpm	50-500
	Spindle power KW	2*15
	Spindle taper	NT50
	Cutting diameter mm	250/300
X/Y/Z axis	X/Y/Z/A axis motor power	3/3/3/2
	X/Y/Z Max feed speed m/min:	8000/8000/8000
	X/Y/Z Max cutting speed	6000/6000/6000
Accuracy	Squareness mm/300mm	0.015
	Accuracy for dimension mm/300mm	0.015
Tank capacity	Hydraulic oil tank L	80
	Lubrication oil tank L	3
Power	Power	AC380V/220 45KVA
Others	Machine net weight KG	12500
	Space	4.6*4.2

Our Main Products: High precision machining centers, Surface Grinding machine, Gantry grinding machine, NC band saw machine, CNC Circular plate sawing, CNC Vertical milling machine, CNC Duplex milling machine, Deep hole drilling machine, Horizontal milling centers, Vertical machining centers, High speed CNC turning centers, High Precision 5-Axis Vertical Machining Center We can customize models according to customer requirements, more Non-standard series please consult the manufacturer. Our Advantages

Our Service

Certifications


FAQ
FAQ
Q1. What is the payment Terms ?
A1: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is the package of the machines?
A3: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q4. What is your trade terms?
A4: FOB, CFR, CIF or others terms are all acceptable.
Q5. What is your minimum order quantity and warranty?
A5: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q6.When is the delivery time?
A6: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q7: How to ensure the quality?
A7: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q8: How to deal with the after-sales service?
A8: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
Q9: How do we get the training for the machines?
A9: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q10: Where is your factory located?
A10: Our factory is located in Dongguan city and Chongqing city.





Es Top: Professional made the excellent machine.
