Hydraulic Woodworking Cold Press Machine for Making Veneer Plywood 400t 500t 600t 800t

Product Description

Hydraulic Woodworking Cold Press Machine for Making Veneer Plywood 400t 500t 600t 800t


>>>Plywood Cold Press Introduction:
Plywood cold press is a kind of equipment used to synthesize plywood by cold pressing multi-layer veneer (veneer) at normal temperature in the plywood production process. Unlike the hot press, the cold press does not require heating, but rather solidifies the glue through a long period of continuous pressure, thus achieving a strong bond between the boards. The cold press is widely used in the production of plywood, joinery board, decorative board and other plates
1. Working principle
The plywood cold press provides steady pressure through a hydraulic system to press together multiple layers of glue-coated veneer. At room temperature, the glue forms a firm bond between the boards through a long curing process. The pressure of the cold press is usually lower, but the duration is longer to ensure that the glue is fully cured.
2. Main components
- Platen: usually made of high-strength steel, the surface is flat to ensure uniform pressure distribution.
- Hydraulic system: Provides stable pressure, usually including hydraulic cylinder, oil pump, control valve and other components.
- Frame: The frame structure that supports the pressure plate and hydraulic system, usually made of heavy steel, to ensure equipment stability and durability.
- Control system: Used to adjust and control pressure, pressure holding time and other parameters, usually using manual or automatic control.
- Auxiliary equipment: including feeding and discharging devices, alignment devices, etc., for improving production efficiency.


As different clients requires, the plywood size, thickness, plywood application, we can offer the suitable cold press machine.
>>>Specification:

Pressure	400t /500t /600t /800t
Cylinder diameter	Φ320*2pcs /Φ360*2pcs /Φ260*6pcs
Power	13.2kw
Application	For pressing plywood, melamine plywood, furniture plywood...
Max opening	1800mm/1200mm
Size	3600*1400*4000mm

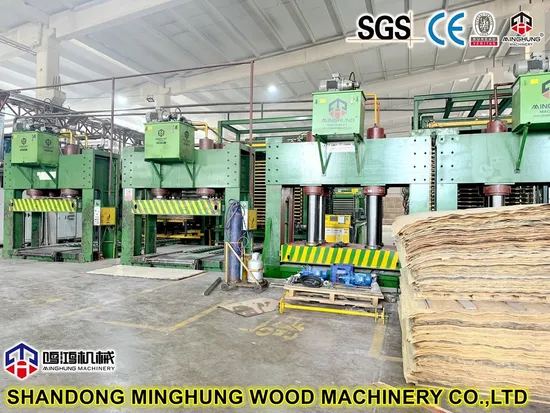

>>>Cold Press Machine Show:
The material of frame:
Using steel plate conform to International standard, thick thickness, the whole cold press machine weight reach 12t, make sure machine good quality.
Cylinder:
The oil cylinder is treated with anti-rust, alloy casting, high hardness, scratch resistance, suitable for high-strength operations, and uses a good oil seal to prevent leakage, ensure the pressure in the oil cylinder, and good performance
Hydraulic Station:
Hydraulic station is one important part for press machine, Our hydraulic station be designed by our engineer, reasonable design of hydraulic system, save energy, all hydraulic components are arranged reasonably, neatly and beautifully placed, and the components like electromagnetic valve, hydraulic pump all use good one.
>>>About us-China manufacturer of woodworking plywood machinery
Our main products include wood log debarker, veneer peeling machine, vacuum veneer stacker, veneer dryer machine, plywood cold press machine, plywood hot press machine, glue spreader, glue mixing machine, automatic plywood veneer paving line, plywood saw machine, sanding machine.
Scientific and technological innovation oriented, quality-based, service supremacy, we offer full complete range of plywood production solution and technology support for our customers. Yet our machines have been exported more than 30 countries and regions like Russia, Poland, Ukraine, Portugal, Bulgaria, Romania, Turkey, Egypt, Morocco, Indonesia, etc, and get good feedback.
With high efficiency sales team offer 24 hours online service, the professional technical team and after-sales service team offer plant layout, machine drawings, and after-sales service.
Choose us, you need not worry anything, we will help you arrange all.
>>>Delivery of MINGHUNG plywood machine:
1> When loading, we will share the loading pictures of plywood press machine with you.
2> When ship leave, we will offer the container and ship information for you.
3> Offer all documents which for your custom clearance.
>>>Related Woodworking Plywood Machine:
>>>RFQ:

Production Time:

1 month after receive your deposit.

Payment Terms:

30% deposit, 70% before delivery. 100% Letter of Credit.

Warranty:

2 years for main parts.

MOQ:

1 set

Installation:

When machine reach your factory, our engineer can go to install

After-sales service:

Any problem that your worker can not solve, tell us, we will reply you at the first time,
