Small Use Acm Micro-Grinding System/Grinder for Powder Coating

Small Use Acm Micro-Grinding System/Grinder for Powder Coating

US$2,000.00-150,000.00 1 Piece (MOQ)

Basic Info.

Classifier Motor
0.75-7.5kw
Classifier Speed
0-3000rpm
Fan
4-55kw
Air
800-8000cbm/H
Throughput
30-1600kg/H
Overall Dimensions
(2100-9000)*(1000-2000)*(2150-4000)
Transport Package
Case, Pallet
Trademark
TOPSUN
Origin
Yantai, China
Production Capacity
5 Sets/Month

Product Description

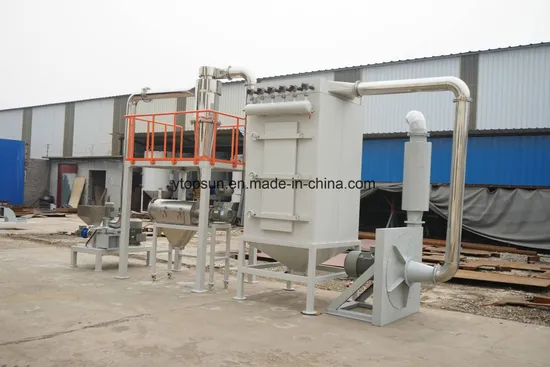

ACM Grinding and Classifying System:
Features:
Safety in accordance with EU explosion resistant standard ATEX/PSR11
Low noise design (from mill to fan system)
Particle size distribution adjustable
Mill body temperature and air intake volume monitoring
Rotary sieve with unique design and durable for mesh wear issue
Whole grinding system designed for powder dust free
Finished powder products with more than 98 percent
High output, easy operation cleaning and maintenance
Optional:
Heat exchanger
Mill speed by VFD
Interlock, monitoring and alarming system installed
Additive feeder
Single, double and multiple cyclone design
Conventional type or vertical platform design with full automatic type
Automatic weighing and packing system
Technical Parameters:
Model Mill Motor kw Rotor rpm Classifier Motor Classifier rpm Fan kw Air cbm/h Capacity kg/h Overall dimensions mm
ACM-05 4 11000 0.75 0-3000 4 800 30-80 2100*1000*2150
ACM-10 7.5 7000 1.5 0-3000 11 2500 100-260 6200*1250*3200
ACM-15 11 7000 1.5 0-3000 15 3000 200-350 6500*1300*3300
ACM-20 15 6600 2.2 0-3000 22 3500 300-400 7500*1300*3600
ACM-30 22 5500 3 0-3000 30 4500 400-550 7900*1500*3600
ACM-40 30 4600 5.5 0-3000 37 5500 600-800 8000*1700*3600
ACM-50 37 4000 7.5 0-3000 45 6500 1000-1200 9000*1900*3900
ACM-60 45 3500 7.5 0-3000 55 8000 1200-1600 9000*2000*4000

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistant quality, effective communication, responsible service.
Why Choosing us?
Our boss has worked in this industry for more than 13 years.
our vice GM has worked in this industry for more than 20 years.
our technical manager has worked in this industry for more than 7 years.
our production manager has worked in this industry for more than 8 years.
We have an excellent team. We are experienced, excellent, friendly and responsible, with a view to long term cooperation.
