Cheap Factory Price PMDC Planetary Gear Motor for Golf Trolley

Product Description

Product Description
Introduction
Specifically for all types of golf trolley design and manufacturing,with low noise,smooth operation,large torque,small size.
customized voltage,speed ,torque available upon request
gear motors for use of other vehicles are available upon request
Specifications
1. Dimensions of device: 60mm
2. Rated Power: 70W
3. Voltage: 24V
4. CCC, CE, UL, CU
5. Can be customized

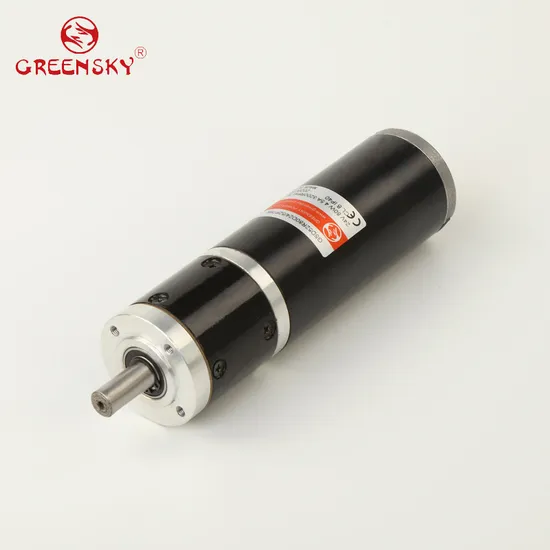

Detailed Photos
Product Parameters

Model	Rated Voltage VDC	No-load speed rpm	No-load current A	Rated speed rpm	Rated torque mN.m	Output power W	Rated current A	Stall torque mN.m	Stall current A
GSD24R0.9D12	12	4500	60	3600	2.5	0.9	170	12.5	0.5
GSD24R1.5D12	12	6000	70	4800	3	1.5	240	15	1

Gearbox
GSD24R0.9D12 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4
Length(L) mm	25.4	25.4	27.8	27.8	27.8	32.7	32.7	32.7	32.7	37.6	37.6	37.6	37.6
No- load speed r/m n	1213	869	321	237	167	88	63	45	32	24	17	12	8.7
Rated speed r/min	970	695	257	189	133	71	51	36	26	19	14	10	7
Rated torque N.m	0.008	0.012	0.028	0.038	0.055	0.093	0.13	0.18	0.25	0.31	0.43	0.5	0.5
Max. permissible load in a short time N.m	0.15	0.15	0.6	0.6	0.6	1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5

GSD24R1.5D12 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4
Length(L) mm	25.4	25.4	27.8	27.8	27.8	32.7	32.7	32.7	32.7	37.6	37.6	37.6	37.6
No- load speed r/m n	1617	1158	429	316	222	118	85	60	43	32	23	16	12
Rated speed r/min	1294	927	342	253	178	94	68	48	35	25	18	13	9.3
Rated torque N.m	0.01	0.014	0.037	0.051	0.073	0.13	0.16	0.25	0.35	0.46	0.5	0.5	0.5
Max. permissible load in a short time N.m	0.15	0.15	0.6	0.6	0.6	1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5

Certifications
Packaging & Shipping

Company Profile
About Greensky Power
Greensky Power Company Limited is a China based international company who is specialized in electric motor, gearbox and controlling system developing, manufacturing, quality controlling and trading.
Mission:
We are dedicated to develop an international electric motor company who can deliver one-stop reliable products with customer-oriented service.
History:
Greensky was established in 2010 by York Cheng in Los Angeles, USA and moved to Hangzhou, China in 2011. In the past years, the team of Greensky continues to create the value to our esteemed customers all over the world by building up wide and reliable supply chain management system, effective quality & delivery time control system, cost efficiency manufacturing system and fast-respond professional service.
FAQ
1 Q: What's your MOQ for the motor?
A: 1unit is ok for sample testing
2 Q: What about your warranty for your motor?
A: One year.
3 Q: Do you provide OEM service with the customer logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.
4 Q: How about your payment terms?
A: TT, Western Union, and PayPal. 100% payment in advance for orders less than $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing?
A: Carton, Plywood case. If you need more, we can pack all goods with pallet.
6 Q: What information should be given, if I buy a motor from you?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the motors?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.
We hope you will enjoy cooperating with us.
