Basic Info.
Type
Tool Grinding Machine
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Specification
480*300*330mm
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
43.00cm * 30.00cm * 33.00cm
Package Gross Weight
25.000kg
Product Description
Product Description

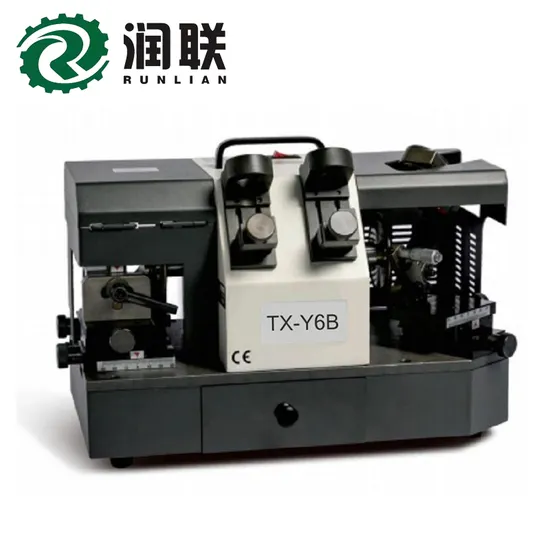

TX-Y6B Portable Grinding Machine Tools
This machine is simple and portable. It can grind three - blade and four - blade straight flutescrew taps, and can also optionally grind five - blade wire tapping.
The Y6B type has a double - head grinding structure. The left side has the same function as the Y3C type, which can grind the entire front cutting surface and front cutting edge of straight flute taps and tip taps, as well as the front cutting surface of spiral taps. The right side has a unique profiling structure that can grind the spiral cutting groove of spiral taps.
Feature :
1- Grinding is accurate and rapid, easy operation with no skill to grind.2- Economical price that greatly reduces the cost and improves the use effect.3- With a diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.4- The electrically controlled and powerful DC motor: stable frequency, strong horsepower, and long service life.5- Bearing shaft and locking unit.6- The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of the drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
Product Parameters
Model
| TX-Y6B
|
Grinding range | M5-M20 |
Motor | 4800rpm |
Point angle | 5° - 30° |
Motor power | AC220V 180W |
| |
Grinding wheel | CBN or SDC |
Dimension(L*W*H) | 480*300*330mm |
Weight | 25KG |
Packaging & Shipping
Company Profile
Weifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprise, metal cutting machine tools, metal cutting tools, Grinder abrasives, measuring tools, machine tool functional parts, numerical control devices, metal forming machine tools, lubricating grease, and oil Machine function parts, numerical control devices (CNC), Metal forming machine, mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider.
FAQ
Q1: What are the Payment Terms?A1: L/C, T/T, Western UnionQ2: What are your trade terms?A2: FOB, CFR, and CIF are all acceptable.Q3: When is the delivery time?A3: The machine could be arranged for delivery within 3 days after your full payment,Q4: What's your Minimum Order Quantity?A4: Any order quantity is warmly welcomed.Q5: What is your MOQ of this item?A5: 1 setQ6:Could you accept sample orders?A6: Yes, we accept sample orders for your evaluation.
