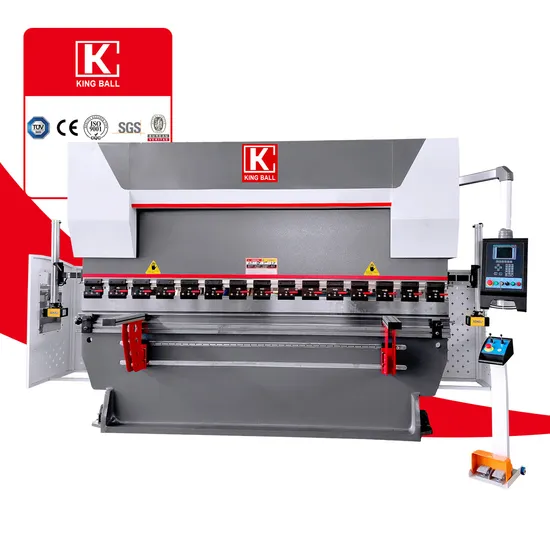

Electro Hydraulic Synchronous CNC Press Brake Kcn-50040 with Da52s

Electro Hydraulic Synchronous CNC Press Brake Kcn-50040 with Da52s

US$44,900.00
1-2 Sets
US$44,200.00
3+ Sets

Basic Info.

Model NO.
KCN-50040
Certification
CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy
Type
Cnc Bending Machine
Nominal Pressure
5000kn
Table Length
4000mm
Max.Slider Stroke
320mm
Max.Shut Height
590mm
Between Columns
3200mm
Throat Depth
600mm
Main Motor Power
37kw
Down Speed
100mm/S
Pressing Speed
6mm/S
Return Speed
70mm/S
Control Axis
X+Y1+Y2+R +W
X Axis Stroke
700mm
X Axis Speed
300mm/S
R Axis Stroke
150mm
R Axis Speed
50mm/S
Transport Package
Plastic
Specification
4500*2800*4100mm
Trademark
KING BALL
Origin
China
HS Code
84622990
Production Capacity
200/Sets/Month

Packaging & Delivery

Package Size
470.00cm * 300.00cm * 250.00cm
Package Gross Weight
4500.000kg

Product Description

Detailed Photos
Torsion Bar NC Press Brake KCN-10032 KCN-10040 KCN-16032 KCN-16040 KCN-20032 KCN-20040
Capacity kN 1000 1000 1600 1600 2000 2000
Max. Bending Length mm 3200 4000 3200 4000 3200 4000
Between Columns mm 2600 3100 2600 3100 2600 3100
Max. Shut Height mm 410 410 450 450 460 460
Slide Stroke mm 150 150 200 200 200 200
Throat Depth mm 352 320 320 320 350 350
Down Speed mm/s 100 100 100 100 100 100
Pressing Speed mm/s 10 10 10 10 18 8
Return Speed mm/s 90 90 90 90 90 90
Main Motor Power kW 7.5 7.5 11 11 15 15
X axis stroke mm 500 500 500 500 500 500
X axis speed mm/s 300 300 300 300 250 250
Outline Size L mm 3700 4500 3700 4500 3700 4500
W mm 1750 1750 1870 1920 2000 1950
H mm 2450 2450 2700 2800 2850 2850
Weight kg 6800 7500 96000 10800 11300 13300

Company Profile
Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
