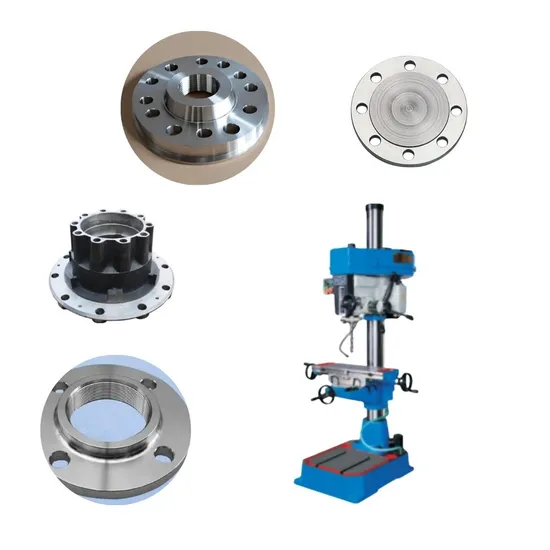

Vertical Type Drilling Milling Machine Zx-32hc/ Zx-32PC

Product Description

Characters:
The machine adopt belt driving and the noisy low, the machinecan drill,enlarge,ream and milling.The machine has the twelve series speed variable feature,which canbe widely fit for processing to kinds of common hard & soft materialThe head and table can rise& down freely, the head could also move reverse,enlarge the range of process,The main body is stable & firm, effective working area of table is585 X190mm.
According to the customer demand the machine can drill.
enlarge,ream and tap the multi holes by the multi spindles.
"P" With collantsystems "H" Without collant systems.

Specification:

Model No.	ZX-32HC	ZX-32PC
Moving
Max.Drilling Capacity	31.5mm	31.5mm
Width of face miling	80 mm	80 mm
Diameter of vertical milling	22 mm	22 mm
Diameter of column	115 mm	115 mm
Spindle
Spindle travel	130 mm	130 mm
Distance spindle axis to column generating line	202 mm	202 mm
Max.Distance spindle nose to table	745 mm	745 mm
Max.Distance spindle nose to base	1245 mm	1245 mm
Spindle taper	MT3	MT3
Spindle speeds range	100~2150 r/min	100~2150 r/min
Spindle speeds series	12	12
Spindle feeds	/	/
Dimension of base	635×460 mm	690 ×520 mm
Other
Overal height	1760 mm	1810 mm
Main motor power	Single-phase 1100w Three-phase 1500w	Single-phase 1100w Three-phase 1500w
Coolant motor	/	/
N.W/G.W	345/305 kg	360/320 kg
Packing dimension	80 ×75×192cm	86×78×198 cm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
