High Quality Planer Thickness Woodworking Machine for Board Surface Thickening

High Quality Planer Thickness Woodworking Machine for Board Surface Thickening

US$2,450.00
1-4 Pieces
US$2,350.00
5+ Pieces

Basic Info.

Model NO.
MB106H
Working Depth
8~190mm
Working Width
<630mm
Drivetrain
Feed Drivetrain
Enter Method
Mechanical
Motor Power
7.5kw
Cutter Shaft
3
Spindle Speed
>5000rpm
Process Type
Heavy Processing
Certification
CE, ISO
After-sales Service
Online Services and Video Services
Target Audience
Wood Working Population, Wholesaler and Retailer
Edition
Latest Edition
Special Service
Optional Upgrade
Character
Thick and Solid
Transport Package
Plywood Cases
Specification
800*1060*1270mm
Trademark
QDZD
Origin
Qingdao, China
HS Code
84659200
Production Capacity
50 Sets/Month

Product Description

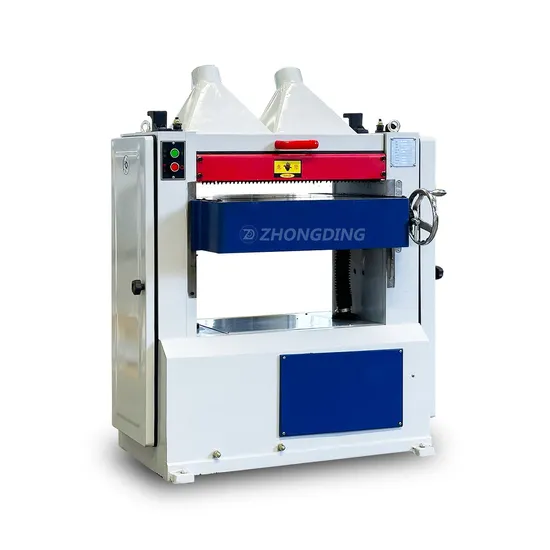

30mm Wood Planer Thicknesser Woodworking Cutting Planing Machine
MB106H
Product Description
There are four types of heavy type planer thicknesser,and their models and details are described below:
Model MB104H MB105H MB106H MB108H
Max. Planing width 430mm 530mm 630mm 830mm
Planing thickness 8-190mm 8-190mm 8-190mm 10-200mm
Planing length >250mm >250mm >250mm >200mm
Max. Planing depth 6mm 8mm 8mm 8mm
Spindle speed 6000r.p.m 6000r.p.m 6000r.p.m 6800r.p.m
Feeding speed 6;8m/min 6;8m/min 6;8m/min 8;10m/min
Overall dimension 760*830*1240mm 760*930*1270mm 800*1060*1270mm 850*1280*1270mm
Weight 480kg 550kg 650kg 780kgs

Detailed Photos
High quality materials are used in all our components:
Certifications
Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.
Relying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as polishing machines,palner machine, press machine etc,which have been exported to lots of countries and regions,such as Europe,Russia,Southeast Asia,Middle East,North America,and Australia.Bring our products and services for more than 66 countrys people and customers.
We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Packaging & Shipping
Safe, thoughtful, meticulous, comprehensive packaging and transportation.
