US$700.00-1,299.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Horizontal Axis
Transport Package
Frame Packing
Specification
Customizable
Production Capacity
10000pieces/Year
Product Description
Product Description
Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter

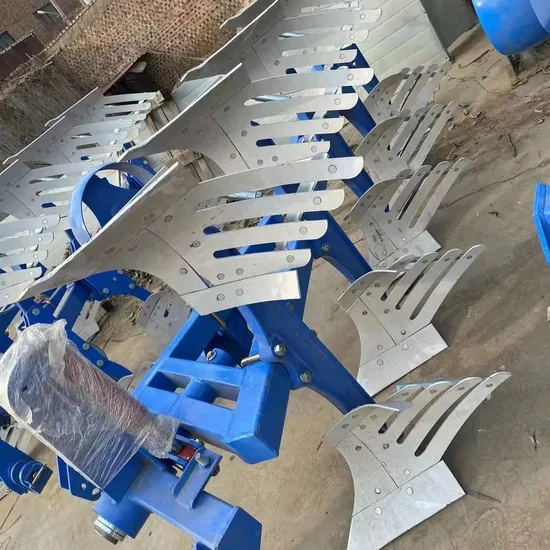

Name:Agricultural Machinery Hydraulic Furrow Flip Plough Plow For SaleThe lightweight card holder flipping plow can quickly flip soil, improve soil structure, promote soil aeration and water infiltration, and is suitable for various farming needs. Suitable for different types of soil, including clay and sandy soil, and can meet various cultivation conditions. Compared to traditional flip plows, the lightweight card holder flip plow uses lightweight materials and structural design, making it easy to operate and transport. Equipped with a hydraulic flipping mechanism, it can achieve rapid flipping of the plow body, with simple operation, reduced manual intervention, and improved work efficiency. Some models have multiple amplitude adjustment functions, which can adjust the plowing range according to soil conditions and operational needs to adapt to different plowing depths. Key components are made of high-strength materials, which have good wear resistance and impact resistance, extending their service life.
Product Parameters:
Model | Work Width(cm) | Mached Power(Hp) | Weight(Kg) | Large Frame Square Tube Dimensions(mm) |
1LF-225 | 50 | 30 | 300 | 80*80*6 |
1LF-325 | 75 | 30 | 360 | 80*80*6 |
1LF-335 | 105 | 60 | 520 | 100*80*6 |
1LF-427 | 120 | 80 | 750 | 80*80*6 |
1LF-430 | 120 | 90 | 750 | 80*100*6 |
1LF-435 | 140 | 120 | 850 | 100*100*8 |
1LF-530 | 150 | 120 | 1100 | 100*80*8 |
Detailed Photos
Packaging & Shipping
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers. Company Profile
Our Company :
Business type | Manufacturer |
Location | Yucheng, Shandong,China |
Year Established | 2005 |
Occupied area | 50 Acres |
Company certification | CE, ISO9001 |
Main product | Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality and excellent performance, our products are annually exported to countries around the world, and we have gained absolute trust from our customers. |
More Products
After Sales Service
1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government. If you are interested in our products, feel free to contart me.
