Basic Info.
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel
Certification
CCC, CE, EMC, LVD, PSE, RoHS
Main Materials
Aluminum & PC
Transport Package
Cartons
Production Capacity
8000PCS/Month
Packaging & Delivery
Package Size
52.00cm * 46.00cm * 28.00cm
Package Gross Weight
2.000kg
Product Description

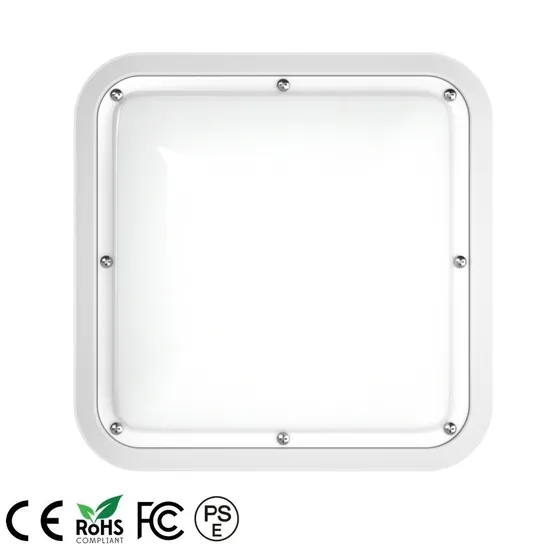

Waterproof IP67 outdoor ceiling light 60w industrial engineering canopy
Product Parameters
Power | 60Watts |
Input voltage | AC100-265V/ 50-60Hz |
LPW | 120-130LM/W |
LED chip | 3030SMD - Bridgelux |
CRI | >70 |
SPD | 10KV |
Beam angle | 120 |
Defend grade | IP67 / IK10 |
Working temp. | -40 ~ 50 C deg. |
Packing | 1pc / 52x46x28cm / 2KG |
Warranty | 5 years |
Product Description
1. AC110-260V / 50-60Hz.
2. Lighting efficacy 120-130LM/W as common, and can be up to 150lm/W.
3. 3030SMD light source.
4. PF>0.9, THD<25%.
6. Die-casting aluminum body, anti-corrosion powder painting.
7. IP67 Waterproof for outdoor use.
8. 5 years warranty.
9. Export certificates are available.
Cautions:
1. Installation must be done by professional electricians.
2. Do NOT take apart the product. It may be dangerous.
3. Do NOT stare at the light with naked eyes. It is harmful to eyes.
4. For outdoor lighting, waterproof measurements must be done
to the cable terminals.
Warranty:
1. All LED Ceiling lamp are warranted by the manufacturer to be free of defects in material and workmanship for 5 years.
2. Warranty becomes void if the products is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly
installed or replaced by the user,
3. During the period of warranty time, if some products fails during normal circumstances and applications or have any defects above defined, we shall replace or repair the defective products at no charge. And the liability claims would NOT exceed the value of the product itself.
