Product Description

DGP series aquatic product and pet feed puffing machine
Fish feed extrusion machine is also known as aquatic livestock, fish, dog food, pet feed extruder.It is the ideal machine for making various of feed pellets.Different size and shapes can be customized to meet the suitable feed for animals.
This fish food pellet machine is suitable for making floating fish feed and other pet food with different shapes by changing different molds. The main material for making fish feed is maize powder and wheat flour. And we also can offer the whole line for making fish feed.
Product Configuration:
Technological parameter date:

Model	Capacity (kg/h)	Main power (kw)	Feeding power (kw)	Cutting power (kw)	Spiral diameter (mm)
DGP-40	40-50	5.5/7.5	0.4	0.4	Φ40
DGP-50	60-80	11	0.4	0.4	Φ50
DGP-60	100-120	15	0.4	0.4	Φ60
DGP-70	180-200	18.5	0.4	0.4	Φ70
DGP-80	300-350	22/27	0.55	0.55	Φ80
DGP-100	400-500	37/55	1.1	1.5	Φ100
DGP-135	750-800	75	1.1	2.2	Φ133
DGP-160	1000-1200	90	1.5	2.2	Φ160

Product Description
Advantages of fish food pellet machine
1. This fish food pellet machine is widely used for producing floating feed pellets of all kinds of aquatic animal.2. Advanced technology and humanized design ensures easy operation and reliable performance.3. High efficiency, low power consumption4. Screw sleeve of this small pet food extruder adopts enchase alloy steel strip structure, which guarantees long service life.5. Different moulds can be chosen to make pellets with different diameters and shapes. 6. Feed pellets die 1-12mm.
More Details:

01 Control cabinet Equipped with convenient control box Easy to operate the whole machine
02 Expansion heating device Choose enlarged screw threaded sleeve Equipped with rapid heating heating plate High puffing effect
03 Cutter device Install the independent cutter motor Equipped with high strength cutter blade
04 feeding hopper Install the enlarged feed hopper Built-in T-shaped stirring roller Even feeding
Production Display

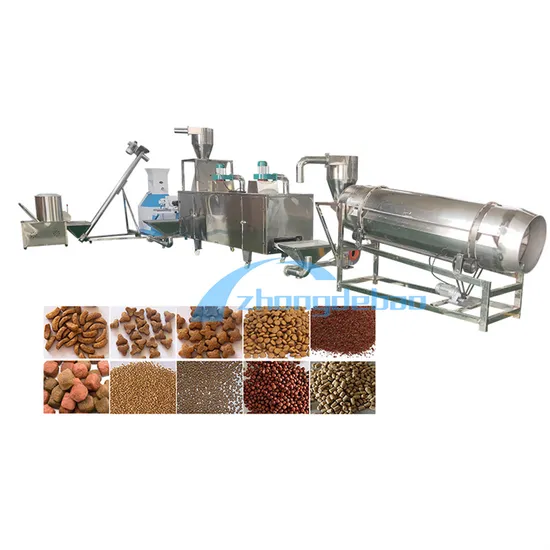

High Quality Puffed Dry Pet Food Extruder Equipment Dog Cat Fish Bird Feed Pellet Processing Lines are used for processing for dogs and cats (pet food), birds, sinking and floating aquatic feeds for fish. Which is a high and new technical program to catch the developing pet food market. Pet food lines mainly use maize, fish powder, meat powder, and some food additive as the main raw material, through mixing, extruding, roasting, and flavoring to get the final puffed pet food. This line is fully automatic, high capacity, and with different shapes. It can produce such as cat food, dog food, fish food, bird food, and so on. Production Line Recommend
Induction of Fish Food Pellet Machine:1. The Floating Fish Feed Pellet Machine can make many kinds of fodder for different kinds of animal fodder. 2. It can make poultry and pet fodder, as well as aquaculture-fodder and fishery feed, which is also called floating -feed.3. It is applied to the pretreatment of the animal fodder; so as to reduce loss of nutrition, advance the protein content, so the fodder will be digested easier by animals. 4. The poultry-fodder can feed chicken, rabbit, sheep, pig, and horse cattle's and so on.5. The pet-fodder can feed dogs, cats; goldfish etc The Fishery-feed can feed the fish, shrimps, crab, eel, catfish, and batrachians etc.
Process flow of Fish Food Processing Machine:Raw material crushing → mixer → screw elevator → Extruder machine → dryer → seasoning → finished product warehouse

a. Raw Materials: adopts corn flour, fish meal as raw materials
b. Products: different shapes are made by adjusting the dies from extruder
c. Capacity: 140 - 160kg/h, 240 - 260 kg/h, 400-500 kg/h, 800-1500 kg/h
d. Flow chart:
Mixing system---Extrusion system---Drying system---Flavoring system---Packing system

e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

f. Machines Materials: Pet Animals Pellet Extruders Line Dog Cat Dry Food Making Machines are made by stainless steel, this Nutritional Dry Pet Pellet Animal Feed Extruder Dog Food Machine Processing Line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
Other Design:
Raw Material Final Production
Floating fish feed processing machinery is applied to produce dry and wet type different shapes fish feed (pet fishes, cultured fishes etc.). The puffing degree can be adjusted to produce floating or sinking feed type. This production line also produce dog, cat, bird feed and so on. Fish feed production line is applied to produce dry and wet type different shapes fish feed (pet fishes, cultured fishes etc.). The puffing degree can be adjusted to produce floating or sinking feed type. This production line also produce dog, cat, bird feed and so on.
floating fish feed extruder is a newly-designed processing for improving market of dog food, floating fish pellets, which is developed successfully with our many years research experiences on food machinery. This dog food making machine endues pet food with novel shape, unique taste and color. It can meet with other needs of modern market by many superior characteristics, such as scientific nutrition formular and easy assimilation.
