Winding New by Container China Finishing Tube Textile Paper Cone Machine Factory

Winding New by Container China Finishing Tube Textile Paper Cone Machine Factory

US$52,000.00
1 Set
US$49,500.00
2 Sets
US$49,000.00
3+ Sets

Basic Info.

Model NO.
TSPC800
Paper Core Usage
Industry, Textile
Tube Machine Type
Winding Machine
Gumming Type
Single Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
50-53PCS/Min
Wall Thickness of Paper Tube
5 - 10mm
Condition
New
After-sales Service
on Line
Supply Ability
58 PCS/Min
Paper Waste Rate
24%
Label
2 Person /Shift
Transport Package
by Container
Specification
3′30 4′20 5′57
Trademark
TIANSHI
Origin
China
HS Code
84414000
Production Capacity
58 PCS/Min

Product Description

Product Description:

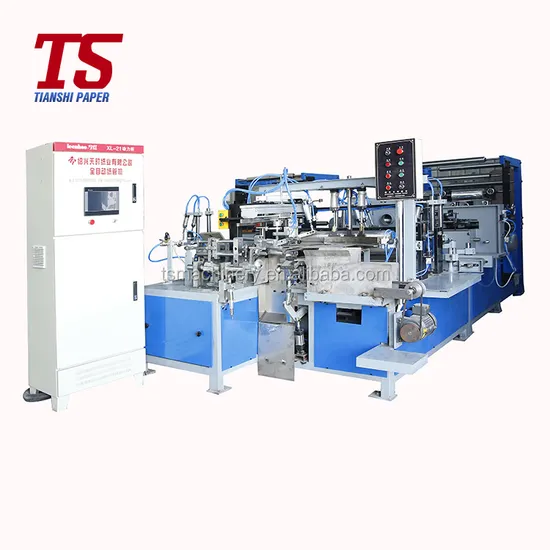

1.Production Process This machine is a fully automatic paper cone production line for textile industry. It is controlled by PLC. It consists of paper cone winding unit, paper cone Printing Unit , drying oven, and paper cone finishing unit. Paper cone finishing machine is new type easy to operate, less mechanical parts, total production line can produce 74880 to 83520ps/24hour , The whole paper cone production process is as follows.(the flocking part not including into the offer ,its optional ) 2.Technical Parameters:
Power Automatic Paper Cone Winding Machine 13.6KW
Dryer Coal heating: 0.75KW
Electric heating: 29.7kw
Paper Cone Finishing Machine 8KW
Flocking (Optional) 8kw
Paper Waste Rate 24% for TSPC800 14% for TS2019-T
Laber 2 person /shift

3.Supply Ability:
TSPC800:The maximum design speed is 58 pcs/min, and normal operation is around 50-53 pcs/min
TS2019-T:The maximum design speed is 98 pcs/min, and normal operation is around 85-95 pcs/min
Company Introduction:
Shaoxing Tianshi Paper Product Co., Ltd was established in 2000, which was specializes in the research, development, and production of paper cone and automatic paper cone making machine for textile.We adhere to the corporate philosophy of quality, technology, innovation, and integrity. After more than twenty years of development, the company are equipped with advanced production equipment, ultra-high technical strength, and a complete after-sales service system. The automatic paper cone making machine has advanced quality within international and domestic market, and won dozens of invention patents and utility model patents,promoting the technological breakthroughs and extionsion of applications. Tianshi paper cone and making machine are exported to overseas countries such as Central Asia, East Asia, Africa, the Americas, and Europe. Brands in the industry are highly recognized and praised by customers.
Packing:
Model TSPC800
Dimension Automatic paper cone winding machine 2100*7250*1600mm
Hot Dryer 8260*1100*3000mm
Finishing ( Noshing , roughing ) machine 2300*2100*1420mm
Total set dimension 8000*13400mm
Weight 9 Ton
Container Need 1*20GP and 1*40GP
Package By container

Terms and Conditions:
(1)Payment Terms: 30% Advance with order , Balance 70% Before Shipping
(2)Delivery Time: 45 working days for one set.
After-Sales Service: We will send our engineer to your factory to install machine and training your worker , Machine guaranty 12 month ,you need to pay air tickets, visa fees , hotel and food for our engineer.After 12 month you need to pay spare parts charge, air component parts , and electronics switch and sensor we cannot give any guaranty . Before our engineers will come to Install machine Please arrange material, Paper Rolls , Glue , Printing ink , Printing Block and 1 Operator and 2 Helper for Testing machine and learn how to run machines. Customers and Exhibition:
