Cy43 Ask/Ook Super-Heterodyne 315 433.92 MHz RF Receiver Module

Cy43 Ask/Ook Super-Heterodyne 315 433.92 MHz RF Receiver Module

US$1.20-2.00 100 Pieces (MOQ)

Basic Info.

Model NO.
CY43
Support Network
RF
Information content
Data
Certification
CE, RoHS
Condition
New
Frequency
433.92/315MHz
Sensitivity
-114dBm
Voltage
2.4~5.5V
Current
4.3~4.6mA
Working Temperature
-20 ~ 70 Degree
Modulation
Ask/Ook
Data Rate
2.4kbps
Transport Package
Plastic Pallet with Individual Slot
Specification
43.3*12*5mm
Trademark
CY
Origin
China
HS Code
8517629900
Production Capacity
200000PCS/Year

Product Description

Description:
The CY43 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. High receiving sensitivity and strong ability of resisting. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development. CY43 is for commercial level version.
Features: Frequency: 315MHz/433.92MHz (custom frequency is available); High sensitivity: -114dBm; Supply voltage: 2.4 to 5.5V; IF band: 230KHz @433.92M; Low power consumption: 4.3mA@315M, 4.6mA@433.92M; Good selectivity and stray radiation suppression ability, easy to pass CE / FCC international certification Good local oscillation radiation suppression ability, can work with multiple receiving modules (single transmission and multiple reception) without interference with each other, use together without Affect the receiving distance.
Application Car remote control door switch (RKE) Wireless industrial remote control Remote door opener Wireless security alarm Remote control curtain Drying racks, garbage disposals and other products with motor interference
Pin Description

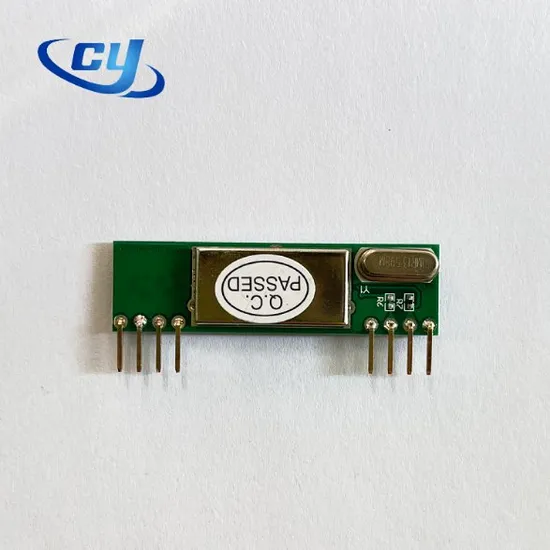

Figure1 CY43 Shape & Pins
Pin-out as showed in figure 1 above
Pin Name Pin Definition
ANT Antenna In
GND Connect to negative power supply
GND Connect to negative power supply
VCC Connect to positive power supply
VCC Connect to positive power supply
DE Optional output:
1, DATA output(default setting)
2, Battery Saving Mode
(Working mode in high level input)
(Sleeping mode in low level input)
DATA Data Output
GND Connect to negative power supply

Note 1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz
Electrical Characteristics:
Condition: Ta=25ºC Vcc=5.0V Frequency=315MHz
Parameter Specification Unit Condition
Min. Typ. Max.
Frequency Range 314.90 315 315.10 MHz Other freq. available
Receiver Sensitivity -114 dBm BER=10E-2
Receiving Bandwidth 200 kHz
Decoding output max. voltage 2.4 3.75 5.0 V DC
Decoding output max. voltage 0.5 V
Current 3.6 4.3 5.0 mA DC
Operating Temperature -20 70 ºC

Condition: Ta=25ºC Vcc=5.0V Frequency=433.92MHz
Parameter Specification Unit Condition
Min. Typ. Max.
Frequency Range 433.82 433.92 434.02 MHz Other freq. available
Receiver Sensitivity -114 dBm BER=10E-2
Receiving Bandwidth 200 kHz
Decoding output max. voltage 2.4 3.75 5 V DC
Decoding output max. voltage 0.5 V
Current 3.9 4.6 5.3 mA DC
Operating Temperature -20 70 ºC

Mechanical Size: (Unit: MM)
Figure2 CY43 Dimension
Cautions:
The drive current of the data output pin is relatively weak. If the MCU is directly driven, the I/O port must not be connected to the pull-up or pull-down resistor, and the inside pull-up or pull-down resistor must be set in the disabled state.
