3015 4020 6020 6025 Switch Table CNC Fiber Laser Steel Cutting Machine Malaysia Sheet and Tube Machines

3015 4020 6020 6025 Switch Table CNC Fiber Laser Steel Cutting Machine Malaysia Sheet and Tube Machines

US$46,666.00-428,699.00 1 set (MOQ)

Basic Info.

Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry, Construction Machinery
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Carbon Steel, Stainless Steel, Aluminum etc Metal
Structure Type
Single Table
Laser Classification
Fiber Laser
Laser Technology
Laser Cutting Machine
Machine Body
Qiaolian
Fiber Laser
Max Brand
Controller
Fscut3000 Sheet Tube Controller
Laser Head
Auto Focus Laser Cutting Head
Motor and Driver
German Lead-Motion Servo Motor and Driver
Precision Reducer
Japan Shimpo/3 Arc-Min
Linear Guide
German Rexroth/INA
Rack
Taiwan Yyc
Pressure Monitoring Alarm Device
SMC
Electronic Pieces
France Schneider
Transport Package
Tray
Specification
1.5m*3m/2m*4m/2m*6m/2.3m*6m/2.5m*6m/2.5m*8m
Trademark
QIAOLIAN
Origin
China
HS Code
8456110090
Production Capacity
2000sets Per Year

Product Description

3015 4020 6020 6025 Switch Table CNC Fiber Laser steel Cutting Machine Malaysia sheet and tube machines I.Features 1. One Machine with Two Functions It can cut both sheet and tube metals, replacing a professional sheet laser cutting machine and tube laser cutting machine in total. For users, it will expand their scope of cutting materials and enhance their market competitiveness. * Save purchasing costs * Improve cutting efficiency * Accept more diversified orders
2.Double Table ,Save time for loading and unloading materials;
3.The cutting area is protected by a cover to prevent splashes and be safe;
4.With a camera, the cutting situation is clear at a glance.
II. Advantages 1.Steel Plate Welding Bed 1.Our laser machine body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.
Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.

2.Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;


2. Cast Aluminum Beam
Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;
3. Professional sheet tube laser cutting machine system *.Support basic technique of Fly cut, frog-leap lifting, kerf width compensation, lead line, micro-joint, pre-piercing, film cutting etc.
* Provide fine cutting technique, smooth start and end in the toolpath cutting.
* Support intelligent barrier avoidance, laser head frog-leap lifting in production.
* Support scan QR import drawing, task scheduling, and multi-area production etc.
* Maximum acceleration 1.5G.
* Provide dual-Y drive position error detect function.
* support standard tube(rectangle, circle, oval, ellipse and obround etc.) , free form , and steel channels(T/U/H/L shape) production of high precision and efficiency.
* Support offset tube center error in production to improve through holes cutting precision.
* Suppport seperate technique for corner cutting.

4.Intelligent bus control cutting head, Active Collision Prevention It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently; Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

5.Imported Parts, Precision Guaranteed
Equipped with dualhigh-powered servo motors and drivers which from German Core transmission parts like speed reducer and gears are imported from Japan High-precision racks,guide rails and ball screws are produced by world-famous brands.


6. Quality Control System
Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;
III. Parameters
Model JLMDS3015 JLMDS4015 JLMDS4020 JLMDS6020 JLMDS6023 JLMDS6025
Power 3000W-40000W
Working Area (L*W) 3000*1500mm 4000*1500mm 4000*2000mm 6000*2000mm 6000*2300mm 6000*2500mm
Diameter(mm) 120 / 160 / 220 / 280 / 320 / 350
Tube length(mm) 3000 / 6000 / 7000 / 9000
Maximum revolutions of chuck(RPM) 80-120
X/Y-axis Positioning Accuracy ±0.05mm
X/Y-axis Repositioning Accuracy ±0.01mm
Positioning speed 90m/min
Max. Acceleration 1.2G

*The above data are for reference only, subject to the actual product!

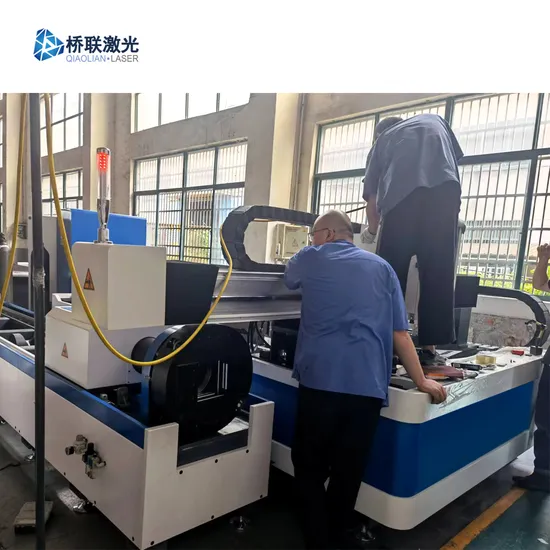

IV. Customers site


V. Cutting samples
