Onen Factory Produce 6m 8m 10m 12m High Lifting Aerial Work Platform Electric Self Propelled Scissor Lift with CE RoHS Certificate for Construction Warehouse
Basic Info.
Model NO.
ON1212
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Insulating
Certification
CE, RoHS, ISO 9001
Battery
24V/160ah Maintenance Free Gel Battery
Power
AC Motor
Motor Power
4kw
Driving Type
Hydraulic Motor
Extended Platform Size
1000mm
Platform Size
2243*1134mm
Platform Lifting Heigh
6m, 8m, 10m, 12m
Working Height
8m, 10m, 12m, 14m
Max,. Hydraulic Power
240 Bar
Extended Platform Capacity
110 Kg
Max. Capacity
320 Kg
Turning Radius
2200mm
Wheel
Traceless Rubber Wheel
Ground Clearance
60mm
Gradeablity
25%
Transport Package
Nude Packing
Specification
2 person working
Trademark
ONEN
Origin
China
HS Code
8428909090
Production Capacity
100 PCS/ Month
Packaging & Delivery
Package Size
2250.00cm * 1200.00cm * 2180.00cm
Package Gross Weight
3000.000kg
Product Description

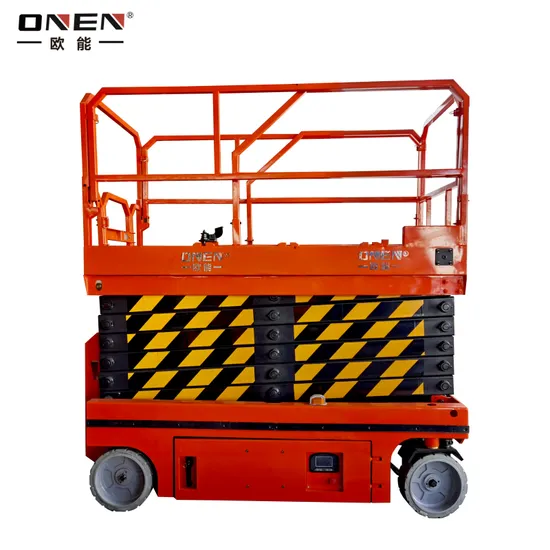

ONEN self propelled electric scissor lift working platform.1, Strong power AC motor, hydraulic driving system, more stable and smoothy for driving and lifting.
2, Extendable platform, spacious and safe working space.
3, Pothole protection device, anti-collision protection, falling alarm and other safety systems, safe and reliable.
4, The integrated high-definition LCD instrument integrates functions such as lifting operation buttons, mode selection, power display, and working time.
| No. | Name | Unit | ON0608 | ON0810 | ON1012 | ON1212 | |
| 1 | Max. Capacity | kg | 230 | 450 | 320 | 320 | |
| 2 | Load of platform extension | kg | 110 | 110 | 110 | 110 | |
| 3 | Service Weight | kg | 1390 | 2460 | 2800 | 2985 | |
| 4 | Overall width | b | mm | 760 | 1150 | 1150 | 1150 |
| 5 | Wheelbase | mm | 1370 | 1850 | 1850 | 1850 | |
| 6 | Track width | mm | 646 | 1020 | 1020 | 1020 | |
| 7 | Wheel size | mm | Φ305x114 | Φ380x130 | Φ380x130 | Φ380x130 | |
| 8 | Max. Number of workers (Indoor) | 2 | 3 | 2 | 2 | ||
| 9 | Max. Working height | mm | 8000 | 10000 | 12000 | 13900 | |
| 10 | Max. Platform height | mm | 6000 | 8000 | 10000 | 12000 | |
| 11 | Folded overall height(Rails up) | h1 | mm | 2170 | 2340 | 2460 | 2582 |
| 12 | Folded overall height(Rails down) | h2 | mm | 1840 | 1710 | 1830 | 2030 |
| 13 | Platform size (Length × Width) | L1×b1 | mm | 1840×760 | 2243×1134 | 2243×1134 | 2243×1134 |
| 14 | Platform extension length | L3 | mm | 900 | 1000 | 1000 | 1000 |
| 15 | Overall length (Extented) | L2 | mm | 2720 | 3243 | 3243 | 3243 |
| 16 | Overall length (Indented) | L1 | mm | 1840 | 2243 | 2243 | 2243 |
| 17 | Truning radius (Inside/Outside) | mm | 1550 | 2200 | 2200 | 2200 | |
| 18 | Ground clearance | M | mm | 60 | 85 | 85 | 85 |
| 19 | Ground clearance(Pothole protection opened) | mm | 20 | 25 | 25 | 25 | |
| 20 | Max. Hydraulic power(Function module) | Bar | 240 | 240 | 240 | 240 | |
| 21 | Max. Wind speed | m/s | 0 | 12.5 | 12.5 | 0 | |
| 22 | Travel speed (Folded) | km/h | 4 | 3.5 | 3.5 | 3.5 | |
| 23 | Travel speed (Raised) | km/h | 0.8 | 0.8 | 0.8 | 0.8 | |
| 24 | Gradeability(Pothole protection closed) | % | 25 | 30 | 25 | 25 | |
| 25 | Max. Working slope | ° | 3/1.5 | 3/1.5 | 3/1.5 | 3/1.5 | |
| 26 | Vibration value at most | m/s2 | 2.5 | 2.5 | 2.5 | 2.5 | |
| 27 | Voltage/Capacity of lead-acid battery | V/Ah | 24/160 | 24/160 | 24/160 | 24/160 | |
| 28 | Sound leave at driver's ear | Db | <70 | <70 | <70 | <70 |
