Small Mini Excavator 08 16

Small Mini Excavator 08 16

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
08
Type
Crawler Excavator
Usage
Special Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Hydraulic
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Container
Specification
08/16
Trademark
Jiayang
Origin
China

Product Description

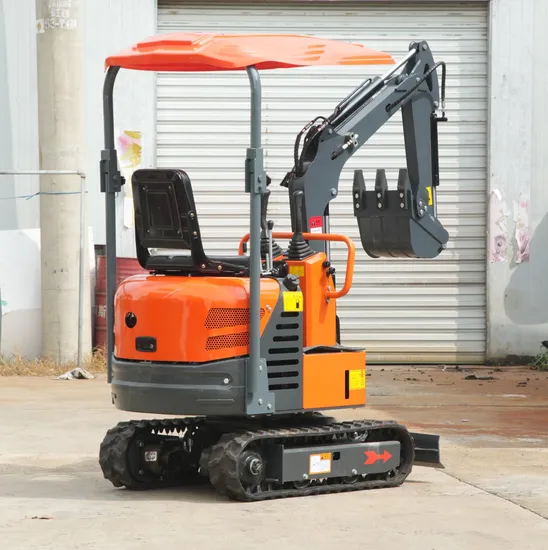

JY08 Mini Crawler Excavator Mini excavator JY08
With CE certificate
JIAYANG mini excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench etc. It is with compact design, easy to maintain. Lots of attachments can be used on this excavator which can expand their application scope.
08 mini excavator spicification:
Model JY08
Manufacturer YANCHENG JIAYANG MACHINERY Co., Ltd
Brand JIAYANG
Operating Weight 880kg
Digging bucket capacity 0.025cbm
Bucket width 380mm
Engine KOOP EUROP 5 STAGE EMISSION
Rated power 7.5 kw/3600r/min
Displacement 0.211 L
Bore stroke 70X55
Main pump ZANEDA
Displacement 6.8ml/r
Hydraulic system pressure 16 MPa
Swing motor SJ-TECH (MP-1-160)
Traveling motor KERSEN (OMS-2450)
Travel speed 1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH) 2770X896X1490 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm

It is with unique design, compact and flexible. Suitable to be used in small area, small project, low oil consumption, connenient to use. With rubber tracks, can travel on any roads. Here are some main specification:

P. S. We also can supply the big machines, so if any need of these machines (EXCAVATOR (0.8 ton to 45 ton), both wheel excavator and crawler excavator, backhoe loader, concrete pump, forklift, skid steering loader, wheel loader, roller etc ), contact me freely. I will serve you well.
