20411-T Metric Female 24° Cone with O-Ring Dko-L Metal Fitting
Basic Info.
Model NO.
20411-T
Connection
Female
Surface Treatment
Galvanized Sheet
Head Type
Hexagon
Seal
24 Degree Cone Seal
O-Ring
O-Ring
DN
6-38
Dash
04-24
C
1.5-5.5
S
14-60
Transport Package
Wooden Case
Specification
M12*1.5 - M52*2
Trademark
ARGUS
Origin
China
HS Code
7307990000
Production Capacity
1000000/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.100kg
Product Description

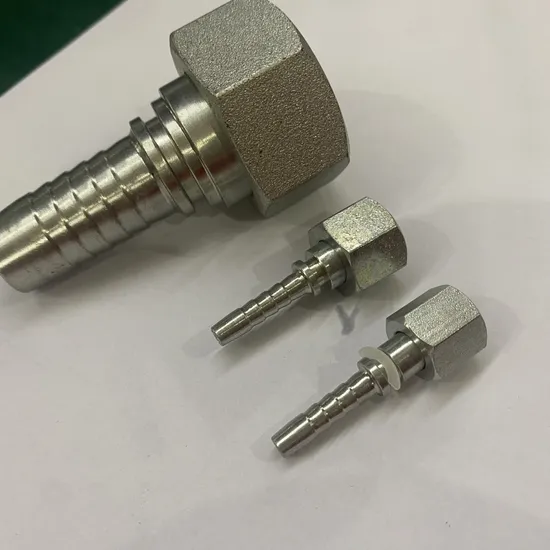

Product DescriptionThe 20411 Metric Female 24° Cone O-Ring L.T.DIN3865 Hose Fitting is designed for use in hydraulic systems that require reliable and leak-free connections. It is ideal for a variety of applications, including construction, agriculture, and mining equipment, as well as industrial machinery and vehicles.This fitting is made from high-quality materials to ensure durability and longevity. The body is made from carbon steel, which is known for its strength and resistance to corrosion. The cone and collar are plated with zinc to provide added protection against rust and wear.
The 24° cone seal design of this fitting ensures a secure and tight connection that can withstand high pressures and vibrations. The cone and collar are designed to match perfectly, providing a leak-free seal that is resistant to erosion and wear.
The O-ring seal of this fitting provides an additional layer of protection against leaks. The O-ring is made from nitrile rubber, which is known for its resistance to oil, heat, and abrasion. The O-ring is located on the face of the cone, ensuring that it is always in contact with the mating surface, providing a reliable and leak-free seal.
The L.T.DIN3865 design of this fitting is compatible with a variety of hoses, including those made from synthetic rubber, thermoplastic, and PTFE. The fitting is designed to be used with hoses that have a maximum operating pressure of 400 bar and a temperature range of -40°C to +100°C.
| DIMENSI0NS | ||||||
| Part No. | Thread M | DN | DASH | TUBE 0.D. | C | S |
| 20411-12-04W | M12×1.5 | 6 | 04 | 6 | 1.5 | 14 |
| 20411-14-04W | M14×1.5 | 6 | 04 | 8 | 2 | 17 |
| 20411-14-06W | M14X1.5 | 10 | 06 | 8 | 2 | 17 |
| 20411-16-04T | M16×1.5 | 6 | 04 | 10 | 2.5 | 19 |
| 20411-16-05W | M16×1.5 | 8 | 05 | 10 | 2.5 | 19 |
| 20411-16-06W | M16×1.5 | 10 | 06 | 10 | 2.5 | 19 |
| 20411-18-05T | M18×1.5 | 8 | 05 | 12 | 2.5 | 22 |
| 20411-18-06T | M18×1.5 | 10 | 06 | 12 | 2.5 | 22 |
| 20411-22-06T | M22×1.5 | 10 | 06 | 15 | 2.5 | 27 |
| 20411-22-08T | M22×1.5 | 12 | 08 | 15 | 2.5 | 27 |
| 20411-26-10T | M26×1.5 | 16 | 10 | 18 | 3 | 32 |
| 20411-26-12W | M26×1.5 | 20 | 12 | 18 | 3 | 32 |
| 20411-30-10T | M30×2.0 | 16 | 10 | 22 | 4 | 36 |
| 20411-30-12T | M30×2.0 | 19 | 12 | 22 | 4 | 36 |
| 20411-36-12T | M36×2.0 | 19 | 12 | 28 | 4 | 41 |
| 20411-36-16T | M36×2.0 | 25 | 16 | 28 | 4 | 41 |
| 20411-45-16T | M45×2.0 | 25 | 16 | 35 | 5 | 50 |
| 20411-45-20T | M45×2.0 | 32 | 20 | 35 | 5 | 50 |
| 20411-52-20T | M52×2.0 | 32 | 20 | 42 | 5.5 | 60 |
| 20411-52-24T | M52×2.0 | 38 | 24 | 42 | 5.5 | 60 |
