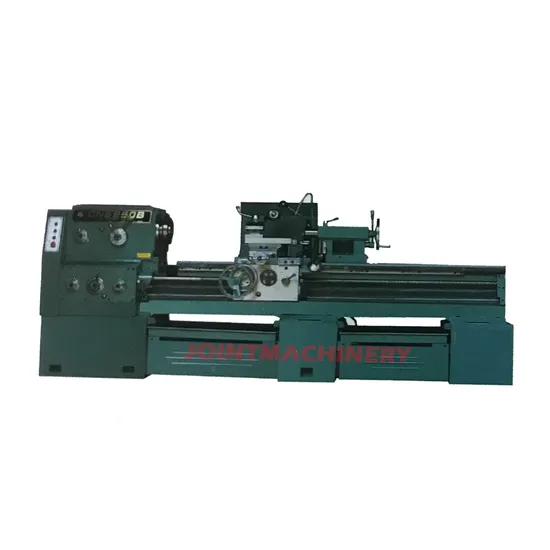

Conventional Metal Lathe Machine with 800mm Max Swing Over Bed and 3500mm Processing Length

Product Description

√ Immerse yourself in the world of unparalleled durability and precision in body machining with our exquisite machine guide way, boasting an extraordinary hardness beyond HRC52°. This exceptional attribute is achieved through the meticulous use of a high-precision CNC guide way grinding machine, a testament to its remarkable longevity and superior accuracy.
√ Revel in the excellence of our lathe head box, feed box, and sliding box, each crafted with meticulous attention using state-of-the-art CNC machine center machining. This advanced process ensures that every box achieves the pinnacle of machining precision, guaranteeing that each component upholds the highest standards of craftsmanship and quality.
√ Experience the delight of impressively low gear noise with our precision-engineered transmission gear, subjected to rigorous CNC gear grinding machining and exhaustive noise testing. This meticulous attention results in a quiet and flawlessly smooth operation, enhancing your machining experience.
1. Quenched Guideway
Our quenched guide rail is the epitome of exceptional hardness and wear resistance, setting a new benchmark for durability and performance in its class.
2. Tool Post
Enhance your lathe's capabilities with a standard 4-position tool post, or opt for the advanced quick-change tool post for greater flexibility in your machining operations.
3. Three-Jaw Chuck
Standardly outfitted with a 3-jaw manual chuck, you have the option to upgrade to a versatile 4-jaw chuck, expanding your machining potential and adaptability.
4. Tailstock
Engineered with a standard manual tailstock, this feature is ideal for efficiently managing shaft bar workpieces, enhancing your operational efficiency.
5. Working Light
Equipped with a working light, this thoughtful inclusion enhances operator convenience and eases the operation process, ensuring a seamless workflow.
Conventional Metal Lathe Machine with 800mm Max Swing Over Bed and 3500mm Processing Length

Model			CN6280
Max swing over bed		mm	800
Center height		mm	400
Max work piece length		mm	2000, 3500
Bed rail width		mm	510
Max turning diameter of work piece on tool holder		mm	560
Max turning diameter of workpiece in saddle groove		mm	1000
Valid length of gap		mm	240
Through hole diameter		mm	82
Bore hole		mm	90/1:2
Spindle rotation speed		rpm	8-1400
Max transverse travel of tool rest		mm	410
Max travel of small tool rest		mm	175
Distance between spindle center line and tool support surface		mm	about 37
Tool cross sectional dimension (H*W)		mm	32*32
Longitudinal feed		mm/r	0.028-6.43
Transverse feed		mm/r	0.012-2.73
Taper of center sleeve inner hole		mm	MT5
Max movement of center sleeve		mm	150
Max transverse movement		mm	±15
Thread	Inch system		72-1/8t/in
	Metric system		0.5-224
	Module		0.5-112
	Diameter pitch		56-1/4DP
Motor specification			11kw 1500rpm
Belt specification			B-2260
Dimension (L*W*H)	1000mm	mm
	1500mm	mm
	2000mm	mm	3560*1250*1480
	3000mm	mm
	3500mm	mm	5060*1340*1430
