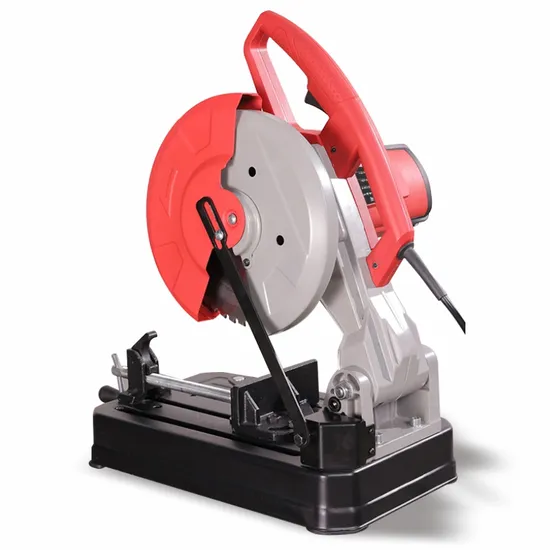

Metal Circular Saw Cold Cut Saw Portable Electric Metal Cutting Saw

Product Description

Metal Circular Saw With Rebar Threading Machine
For cutting metals, the Handle on/off switch is conveniently located. Aluminum housing protects the motor from flying debris. Retractable lower blade guard for safety Fast bypass material clamp. Heavy-duty pressed steel base for added safety.Product Parameters

Model	ID-255G	ID-355G
Saw blade diameter	255mm(10 inch)	355mm(14 inch)
Rated power	2600w	2800w
Speed	950r/min	700-1300r/min
Rated frequency	50Hz	50Hz
Rated voltage	220v	220v
Weight	23KG	25KG
Connection hole diameter	25.4mm	25.4mm
Saw blade body thickness	Steel sheet 1.6-bit tool 2.0	Steel sheet 1.8-bit tool 2.5
Machine size	55*34*42cm	55*34*45cm
Package size	61*38*46cm	61*38*50cm
Cutting depth
Round bar	Max. cutting diameter 80mm	Max. cutting diameter 130mm
Square pipe	Max. cutting diameter 75*75mm	Max. cutting diameter 125*125mm
Rectangular pipe	Max. cutting diameter 90*60mm	Max. cutting diameter 110*160mm
45° cutting
Round bar	Max. cutting diameter 70mm	Max. cutting diameter 120mm
Square pipe	Max. cutting diameter 60*60mm	Max. cutting diameter 100*100mm
Rectangular pipe	Max. cutting diameter 80*50mm	Max. cutting diameter 100*140mm

Detailed PhotosMain feature:
1. Cut the solid steel metal, the speed is generally set at 900-1100/rpm.
2. Cut pipe wall thin metal, the speed is generally set at 1300-1500/rpm.
3. Cut aluminum profiles, copper, wire, and cable, the speed is generally set at 1500/rpm.
4. The machines are available in two regular models: 10" (255) and 14" (355).
5. Wire rolling machine, wire sleeve mounting machine models: 10" without base and 14" without a base.
6. Power 2.5KW, cutting diameter up to 70mm, power 2.8KW, cutting diameter up to 130mm.
7. It can cut 45-degree angles and the motor is brushless frequency to better ensure the efficiency, environmental protection, and longevity of service life.
8. The locking handle must be tightened when cutting; loose workpieces are prone to chipping of the cold-cut saw blade.
9. Start the machine and wait until the speed is normal (it takes 1-2 seconds) before cutting.
Packaging & ShippingPackaging: Exported standard package, internal stretch film, professional beautiful carton packaging, fumigation wooden case, wooden pallet, or customized. Production time: 7-15 days after payment. Shipping terms: EXW, FOB, CNF, CIF, DDU. Shipping ports: Shanghai, Qingdao, Guangzhou, etc.Company ProfileIn 2000, "Ideal machinery" started a small workshop in Changge city, assembling rebar cutting machines and bending machines. through 20 years of development and relying on word-of-mouth advertising, our product involved kinds of light construction machines. In order to push our machines into the overseas market, the Brand "Ideal machinery" is established in 2015 and started export trading. until now, nearly 10,000 sets of our machines are servicing overseas construction sites now.
FAQQ1. What can we do if there are problems with the products?A: Our engineers will analyze the problem for you and find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself.Q2. What is the delivery time for your products?A: Once we promise the delivery time, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.Q3. Is there any guarantee for your products?A: Most of our products have one year guarantee(for the main parts).Q4. How can you control your product quality?A: Quality is always considered the most important part of our manufacturing process. All of our products come under a strict quality control system from raw material inspection, component inspecting,semi-finished product inspecting, performance test of finished products, to random inspection before delivery.
