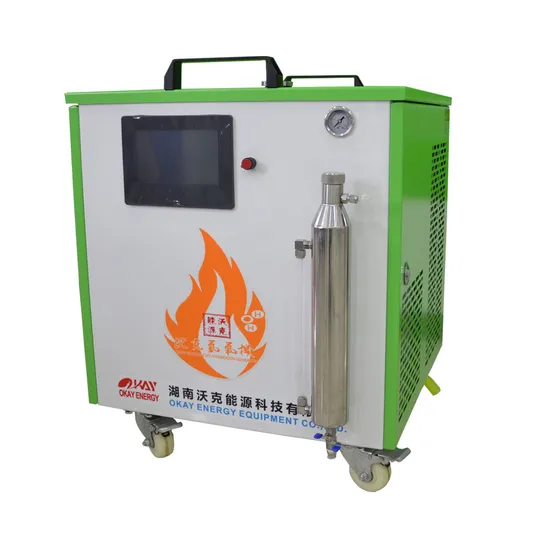

Portable Okay Energy 1000L Hydrogen-Oxygen Electrolyzer Water Fuel Hydrogen Generator Hho

Product Description

portable Okay Energy 1000l hydrogen-oxygen electrolyzer water fuel hydrogen generator hho The Technical Data
Small portable

Model Number	OH100	OH200	OH300	OH400	OH600	OH1000
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single	single
Rated Power(KW/h)	0.4	0.8	1	1.4	2	2.5
Max Gas Output	100L/h	200L/h	300L/h	400L/h	600L/h	1000L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2	2
Max. Water Consumption (L/h)	0.06	0.1	0.16	0.21	0.33	0.53
Water Feed	manual	manual	manual	manual	manual	auto
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.15	0.2
Flame Modifier Feed	manual	manual	manual	manual	manual	manual
Dimensions - L*W*H (mm)	390*250*510	450*250*510	590*250*510	710*250*510	930*250*510	540*500*670
Gross Weight (kg)	15	20	25	35	45	80
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction

Larger industrial

Model Number	OH1500	OH3000	OH5500	OH7500	OH10000	OH20000
AC Voltage Requirement (V)	380	380	380	380	380	380
Phase	three	three	three	three	three	three
Rated Power(KW/h)	4.5	9	17.5	23	31	70
Max Gas Output	1500L/h	3000L/h	5500L/h	7500L/h	10000L/h	20000L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2	2
Max. Water Consumption (L/h)	0.9	1.8	2.8	4	5.6	11.6
Water Feed	auto	auto	auto	auto	auto	auo
Dimensions - L*W*H (mm)	1070*670*1000	700*1100*1280	750*1300*1650	850*1300*1820	1050*1400*1900	2300*1100*1800
Gross Weight (kg)	210	300	396	552	610	1400
Ventilation Space Requirement (mm)	400 in each direction	400 in each direction	400 in each direction	400 in each direction	400 in each direction	400 in each direction

Products Description Oxyhydrogen/Oxy-hydrogen Generator/ HHO generator/hydrogen generator
1.Energy-saving. Oil saving 20%,Energy saving 40% . Consume water and electricity, electrolyze water into hydrogen gas and oxygen gas. Use H2 and O2 as source of flame replacing LPG, Propane, Acetylene fuel or natural gas or other fuel.
2.Environment-friendly. Consumption of water, produce of water. Compared with traditional fuel, and are more beneficial to the environment and human.
3.100% safe. Because the density of hydrogen is small, will not assembled on the ground,so there is no risk of explosion.
4.Save time & money. The temperature of the oxyhydrogen flame is up to 2800 degrees Celsius,and the flame is more concentrated. Compared with conventional fuel, more save time and cost.
5.FCC,CE,SGS,ISO9001

Wide application of HHO generator/oxyhydrogen generator
1.Welding
(1) Electronic Industry welding enameled wire, computer wire peeling, LED wafer, flame-treating circuit board thermocouple and platinum resistor leading wires.
(2) Medical Industry welding metal fittings and mending sand holes in dentistry.No-carbon flame disinfection and glass seal.
(3) Laboratory
(4) Jewelry Industry welding kinds of chain and string which are made of platinum, gold, silver, copper, stainless steel, etc. For mending tiny sand holes on jewelry casting and jewelry repairing.
2.Cutting
widely used in Carbon Steel Cutting and continuous casting slab cutting of steel plant. It can be cooperate with manual cutting torch,semi-automatic cutting machine, shape cutting machine, CNC cutting machine to instead of traditional fuel gas.
3.Sealing
(1) metal and nonmetal heating
(2) glass tube sealing, quartz glass tube sealing
(3) ampoule bottles sealing
4.Polishing:Organic glass/Acrylic polishing

5.Fuel Saving Combustion Supporting/Heating

6.HHO system for fuel saving on cars,taxi,bus,boats
Shipment and Package
About shipping We have long-term cooperated shipping counrier providing one-stop safety and quick shipping service.
Flexible Shipping method by international express(DHL,Fedex,UPS etc),by air,by sea as your requirement.Or using your shipping forwarder.
About Package Standard export package,1set/carton;For industrail larger machine,1set/woodern pallet;
Okay Service
1.24hour online chat,email or phone support for inquiry,technical and after-sales service;
2.Warranty:1year.(The core part of machine for 1year.The other parts of machine for half of year in addition to human damage;
3.online trade assurance service(Protection buyer's payment regarding on-time delivery and product quality.)
Company Introduction
Okay Energy Equipment Co.,Ltd is one of the largest manufacturers in producing oxyhydrogen generator for over 13 years, we have autorized CE,ISO9001,TUV,FCC certificates and our own patents.We provide the best service and high quality products to our customers. If you have any questions, pls don't be hesitate to contact us.
