US$1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Medium Material
Metal Fiber
Dust Collecting Method
Dry
Type
Granular Layer Dust Collector
Product Name
Factory Industrial Bag Type Cyclone Dust Collector
Diameter of Cylinder
1200mm
Function
Removing Dust Particles
Density of Outlet
50mg/M3
Transport Package
Wooden Crate
Specification
On demand customization
Trademark
Zhonglan Hengtai
Origin
Quanzhou City, Fujian Province, China
Product Description
Product DescriptionIntroducing the LCM-D/G TYPE LONG BAG PULSE DUST COLLECTOR, a state-of-the-art dust removal solution that combines high air volume processing with exceptional dust clearance efficiency. Expertly engineered for reliability and ease of maintenance, this compact powerhouse efficiently captures dust in a range of industries, including metallurgy, coal preparation, building materials, electric power, and more. Its robust design ensures optimal performance in contexts like steelmaking furnaces, carbon black production, asphalt mixing, and boiler dedusting, making it a versatile choice for dust control and material recovery.
Working Principle:
1. The dust-laden air is expertly directed into the highly efficient bag filter system.
2. Within the filter chamber, the dust and powder are meticulously separated from the air stream.
3. The system ensures uniform air distribution, effectively preventing channeling while achieving precise powder separation.
4. A preliminary coat of material forms on the bags, which then serves as the primary filtering medium.
5. Dust accumulates efficiently on the filter elements while purified air passes seamlessly through the filter bags.
6. The accumulated powder is systematically dislodged from the bags using an innovative reverse pulsejet air technique, ensuring continuous operation.

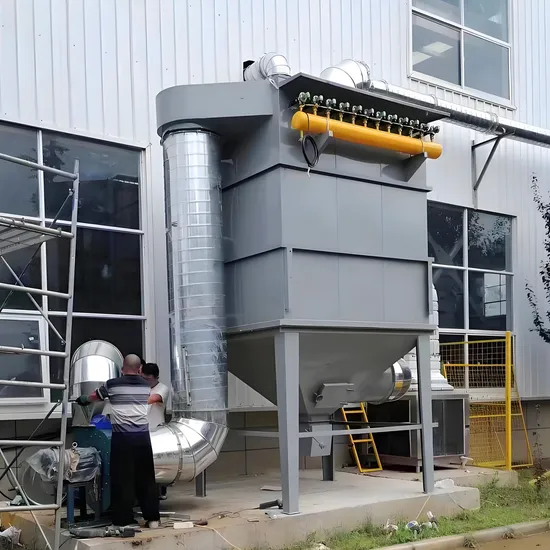

Detailed Photos
Product Parameters
Model parameters | MC-36 | MC-48 | MC-72 | MC-96 | MC-120 |
Filter area(m2) | 27 | 36 | 54 | 72 | 90 |
Filter-bag Qty.(piece) | 36 | 48 | 72 | 96 | 120 |
Specificationsof bag(diameter×length) | 120×2000 | 120×2000 | 120×2000 | 120×2000 | 120×2000 |
Resistance(pa) | 1000-2000 | 1000-2000 | 1000-2000 | 1000-2000 | 1000-2000 |
Collection efficiency(%) | 99-99.5 | 99-99.5 | 99-99.5 | 99-99.5 | 99-99.5 |
Dust concentration for inlet(g/m3) | 3-15 | 3-15 | 3-15 | 3-15 | 3-15 |
Air speed (m/min) | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 |
Air Capacity(m³/h) | 3250-6480 | 4320-8630 | 6450-12900 | 8650-17300 | 10800-20800 |
Pulse valve Qty. (piece) | 6 | 8 | 12 | 16 | 20 |
Pulse period(s) | 60 | 60 | 60 | 60 | 60 |
Blowing pressure (kg/c²) | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
Dimensions (length*width*height) | 1425×1678×3660 | 1425×1678×3660 | 3025×1678×3660 | 4485*1678×3660 | 43685×1678×3660 |
