Video Display Interactive Smart Electronic Electronic Writing Big Board

Product Description

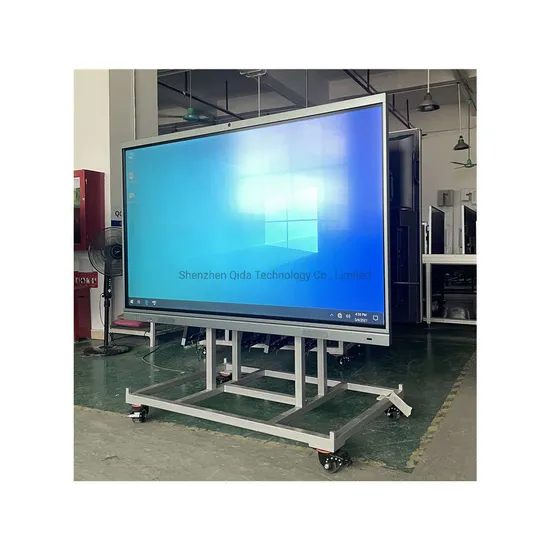

55 65 75 86 98inch interactive smart board Whiteboard lcd screen flat panel tv
Interactive board is a multi functional interactive terminal, which integrated with interactive whiteboard, TV, speaker, touch screen, computer and multi-media player. The lcd whiteboard is widely used in education, conference and commercial. Such as network multi-media education system, training active recording system, company products demonstration, car shops product experiencing system, building information checking system.
Features:
1. Size available: 55inch 65inch 75inch 85inch 98inch 120inch
2. double system: android and windows/linux
3. windows: i3 i5 i7 for choice
4. android: 6.0 7.0 8.0 9.0, 2+16GB, 3+32GB, 4+32GB for choice.
5. 4mm anti-explosion tempered glass (Mohs 7) 1kg iron boll hit on the screen no damage. Anti-glare protect teachers and students eyes. Anti-lightning, anti-static, anti-impact, fire prevention, anti-corrosion, anti-radiation, anti-scratch, Touch screen anti-blocking.
6. Euducational software: zoom in zoom out, different color page, different color pens, resourses, simulations.
7. QR code scan take away the files.
8. with built-in camera and microphones for video conferencing.
9. screen annotation.
10. OEM ODM
11. writting pens and smart pen

	Lcd display size	65inch	75inch	85inch	98inch
	Model No.	QD-IB-IR80-65	QD-IB-IR80-75	QD-IB-IR80-85	QD-IB-IR80-98
Lcd display	Lcd display type	AUO/CHIMEI/TCL CSOT LCD panel	AUO/CHIMEI/TCL CSOT LCD panel	AUO LCD panel	LG LCD panel
	Backlight	D-LED	D-LED	D-LED	D-LED
	resolution	3840*2160	3840*2160	3840*2160	3840*2160
	Overall brightness	≥350cdm	≥350cdm	≥350cdm	≥350cdm
	Contrast ratio	4000:1	6000:1	4000:1	1200:1
	Response time	5ms	5ms	5ms	6ms
	Pixel pitch	0.124×0.372 mm (H×V)	0.4298 x 0.4298 mm	0.4875 x 0.4875 mm	0.5622 mm x 0.5622 mm
	Refresh rate	60Hz	60Hz	60Hz	60Hz
	Viewing angle	178/178	178/178	178/178	178/178
	Color saturation (x% NTSC)	72%	72%	72%	72%
	Lcd display area	1428.48*803.52mm	1650.24 (H)×928.26 (V)mm	1872 (H)×1053 (V)mm	2158.85(H)*1214.35(V)mm
	Lcd display color	8 bit/1.07 Billion	8 bit/1.07 Billion	8 bit/1.07 Billion	8 bit/1.07 Billion
	Screen life	≥30000h	≥30000h	≥30000h	≥30000h
	Aspect ratio	16:9 (H:V)	16:9 (H:V)	16:9 (H:V)	16:9 (H:V)
Touch screen	Touch technology	Infrared touch screen	Infrared touch screen	Infrared touch screen	Infrared touch screen
	Glass	4mm tempered glass (anti-glare optional)	4mm tempered glass (anti-glare optional)	4mm tempered glass (anti-glare optional)	4mm tempered glass (anti-glare optional)
	Glass hardness	7Mohs	7Mohs	7Mohs	7Mohs
	Multi-touch point	20 points multi-touch	20 points multi-touch	20 points multi-touch	20 points multi-touch
	Response time	5ms	5ms	5ms	5ms
	Touch accuracy	±2mm	±2mm	±2mm	±2mm
	Touch diameter	≥3mm	≥3mm	≥3mm	≥3mm
	Input	Finger, pen or any opaque object	Finger, pen or any opaque object	Finger, pen or any opaque object	Finger, pen or any opaque object
	Interface Type	USB 2.0 full speed	USB 2.0 full speed	USB 2.0 full speed	USB 2.0 full speed
	Operating Voltage	DC+5V±6%	DC+5V±6%	DC+5V±6%	DC+5V±6%
	Power consumption	≤2 W	≤2 W	≤2 W	≤2 W
OPS (pluggable)	Chip	HM87	HM87	HM87	HM87
	CPU	Intel core i3-4000M (optional i5, i7)	Intel core i3-4000M (optional i5, i7)	Intel core i3-4000M (optional i5, i7)	Intel core i3-4000M (optional i5, i7)
	Core and main frequency	2 cores 4 threads 2.40GHz	2 cores 4 threads 2.40GHz	2 cores 4 threads 2.40GHz	2 cores 4 threads 2.40GHz
	RAM	4GB DDR3 (optional 8GB)	4GB DDR3 (optional 8GB)	4GB DDR3 (optional 8GB)	4GB DDR3 (optional 8GB)
	Harddisk	128G SSD (optional 256GB)	128G SSD (optional 256GB)	128G SSD (optional 256GB)	128G SSD (optional 256GB)
	I/o ports	JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1	JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1	JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1	JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1
	System	Windows 10	Windows 10	Windows 10	Windows 10
Android system	System	Android 8.0	Android 8.0	Android 8.0	Android 8.0
	CPU	CA53*2+CA73*2	CA53*2+CA73*2	CA53*2+CA73*2	CA53*2+CA73*2
	CPU working frequency	1.5 GHz	1.5 GHz	1.5 GHz	1.5 GHz
	CPU cores	quad core	quad core	quad core	quad core
	GPU	G51MP2	G51MP2	G51MP2	G51MP2
	RAM	2 GB DDR4 (optional 3GB)	2 GB DDR4 (optional 3GB)	2 GB DDR4 (optional 3GB)	2 GB DDR4 (optional 3GB)
	Storage	16 GB Standard (optional 32GB)	16 GB Standard (optional 32GB)	16 GB Standard (optional 32GB)	16 GB Standard (optional 32GB)
	Chinese Simplified,traditional Chinese ,English,Japanese,Russian,German,French,Polish,Spanish,Portuguese,Arabic,Catalonia,Galician,Vietnamese,Ukrainian,Kazakh,Korean,Thai,Bulgarian
Power	Voltage	100 V ~ 240 V/AC, 50/60 Hz	100 V ~ 240 V/AC, 50/60 Hz	100 V ~ 240 V/AC, 50/60 Hz	100 V ~ 240 V/AC, 50/60 Hz
	Maximum power (without OPS)	<=350W	<=350W	<=350W	<=350W
	OPS power supply	19V(DC)/5A	19V(DC)/5A	19V(DC)/5A	19V(DC)/5A
	Standby power consumption	<0.5W	<0.5W	<0.5W	<0.5W
	Power (AC) input	*1	*1	*1	*1
TV system	TV	ATV (PAL,SECAM)	ATV (PAL,SECAM)	ATV (PAL,SECAM)	ATV (PAL,SECAM)
		DTV (DTMB)	DTV (DTMB)	DTV (DTMB)	DTV (DTMB)
	Video decoding	Image motion noise reduction, motion adaptive filtering, etc.	Image motion noise reduction, motion adaptive filtering, etc.	Image motion noise reduction, motion adaptive filtering, etc.	Image motion noise reduction, motion adaptive filtering, etc.
	Channel storage	200	200	200	200
	Stereo surround sound	yes	yes	yes	yes
Audio	Speaker	10W * 2	10W * 2	10W * 2	10W * 2
Ports (on the machine, excluded OPS ports)	LAN input	*2	*2	*2	*2
	VGA input	*1	*1	*1	*1
	PC-AUODIO input	*1	*1	*1	*1
	YPBPR	*1	*1	*1	*1
	AV in	*1	*1	*1	*1
	AV out	*1	*1	*1	*1
	Earphone out	*1	*1	*1	*1
	RF-IN	*1	*1	*1	*1
	SPDIF	*1	*1	*1	*1
	HDMI input	*2	*2	*2	*2
	Touch	*1	*1	*1	*1
	RS-232	*1	*1	*1	*1
	USB2.0	*2	*2	*2	*2
	HDMI out	*1(Optional)	*1(Optional)	*1(Optional)	*1(Optional)
Environment	Operating temperature	0ºC ~ 40ºC	0ºC ~ 40ºC	0ºC ~ 40ºC	0ºC ~ 40ºC
	stored temperature	-10ºC ~ 60ºC	-10ºC ~ 60ºC	-10ºC ~ 60ºC	-10ºC ~ 60ºC
software	Smart white board software for education	Smart white board software for education	Smart white board software for education	Smart white board software for education	Smart white board software for education
	Share screen	Share screen	Share screen	Share screen	Share screen
	Interactive presenter	Interactive presenter	Interactive presenter	Interactive presenter	Interactive presenter
	Conference meeting software	Conference meeting software	Conference meeting software	Conference meeting software	Conference meeting software
	Online interactive class	Online interactive class	Online interactive class	Online interactive class	Online interactive class

interactive smart whiteboard warranty:
1 year
1. first, you can write emails to me ,or video to show the problem. we will help solve it online.
2. If there is some parts need to be changed, we will ship to you.
Normally, our products have few problems, as we have more than 10 years in manufacturing this product. many prototype and hot selling models, are innitially from our factory.
interactive smart whiteboard payment
TT
interactive smart whiteboard package
All of our Advertising display products are packed with carton box and wooden box
interactive smart whiteboard shipping
Fedex, DHL, UPS, Air, Sea
