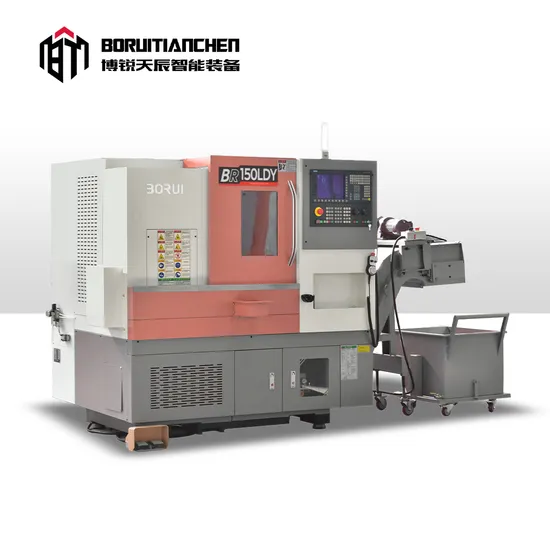

Br150ldy CNC Slant Bed Lathe for Metalworking Turning and Milling Center

Br150ldy CNC Slant Bed Lathe for Metalworking Turning and Milling Center

US$18,999.00-19,257.00 1 Piece (MOQ)

Basic Info.

Model NO.
BR150LDY
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Mechanical Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max.Swing Over Bed
510mm
Max.Swing Over Cross Slide
150mm
Maximum Processing Length
235mm
Spindle Bore
56mm
Highest Spindle Speed
4500rpm
Through Bar Dia.
45mm
X/Z Axis Limit Stroke Limit
135/370 mm
X/Z Axis Screw Specifications
3208/3210
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
1430*1025*1470mm
Trademark
BRTC
Origin
Shandong China
HS Code
8458110090
Production Capacity
500pieces/Year

Product Description

BR150LDY CNC Slant Bed Lathe with Power Turret and Y Axis for Metalworking Mach
Product Description
Product Main Technical Specifications:
Item Unit BR150LDY
Max. Swing Diameter over bed mm Φ510
Max. Swing Diameter over cross slide mm Φ150
Max. Processing Diameter mm Φ250
Max. Processing Length mm 235
Spindle nose type A2-5 (6″ )
Spindle through hole Diameter mm Φ56
Through Bar Diameter mm Φ45
Spindle speed range rpm 4500
Main motor power KW 5.5-7.5
X/Y/Z axis lead screw specification 3208/2508/3210
X/Y/Z axis linear guide specification 35/25/35
X/Y/Z motor torque N.M 11/7/11
X /Z axis Limit Stroke mm 135/370
Y axis limit stroke mm 60 (±30)
X/Y/Z axis Connection Direct connection
Turret 12 station Power turret
Power head specification BMT40
Power head speed rpm 4000
Power head motor kW 2.5
Transmission ratio of power head to motor 1:1
Bed type and Inclination 30° Integrated
Overall dimensions of machine tool mm 1430*1025*1470

Details Display

Our Service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1.(Only some low cost machines will be more than 1)
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
