Auto Paint Spray Booth Car Painting Room Filter

Product Description

Product Description
Characteristic:
1.Fiberglass filter media
2.Large ventilation quantity
3.Small resistance
4.High dust holding capacity
5.Long operating life
Speciality:

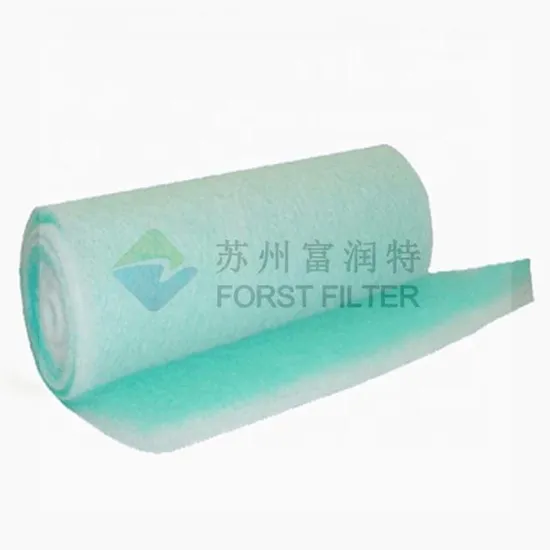

1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-50/60/PA-100, especially suitable for using heat recovery system;
3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;
4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;
5. Nonflammability, temperature resistance at 170°C;
6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;
7. Outer frame may choose the paper frame, the falvanization iron frame, or aluminium alloy frame.
Product Parameters
Functions:
1.Main application to the auto electrophoretic paint filter and the fire-resistant steel casting plant for the flue gas dust removal processing system;
2.Used for the explosion grinding bag dust collector in the blast furnace and cement plant.
Performance parameters:

Model	SFF/PA-50/60	SFF/PA-100
Weight	250GSM	300GSM
Average arrestance	92%-96%	97%-99%
Initial pressure drop	15Pa	20Pa
Final pressure drop	250 Pa	280 Pa
Air velocity	0.7-1.5.m/s	0.7-1.75.m/s
Dust holding at final	3200-3600g/m2	3600-4900g/m2
Temperature resistance	170°C	170°C
Temperature short peaks	190°C	190°C
Normal thickness	50/60mm	100mm
Normal size	0.8/1.0/2.0m*20m	0.8/1.0/2.0m*20m

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
SUZHOU FORST FILTER CO.,LTD is a professional enterprice for air inlet filtration and environmental protection equipment, with researching, development, design, manufacturing, sales, and service together. We introduced advanced technology, and equipment, high efficiency filter cartridge production line, integrated dispensing equipment and advanced stamping, welding, metal processing equipment. Filter core products is imported from United States, Japan, Korea, Europe etc. We can ensure reliable and advanced quality.
We have ISO9001-2008 quality standard system; strictly enforce the air filter standard (GB/T14295-2008). Main products: SFF-K series of new air conditioning units filter, SFF-K series self-cleaning air intake filter, SFF-X series cartridge filter, HR series dust filter cartridges and filters. They are widely used in the steel, shibuilding, rubber, chemicals, pigments, machinery, food, special powders industries etc.
SUZHOU FORST FILTER CO.,LTD is located in Zhangjiagang city of UN Habitat Award honor, it is a port city, Yangtze River is at the north of our factory, beautiful environment and convenient transportation area. It is one hour between Shanghai, Hangzhou and Suzhou city. We will supply reliable quality and professional after-sales service. Our faith is "clean space, intention to create", target is creating better and more clear environment for work and life.
We have a very good working team for customers. Our engineers and trained workers are our most valuable assets. Our engineers have been working with us for more than 10 years. We train every worker before they go to their positions.
We make all kinds of the cartridge filters, it Suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacco, pulverized coal ash and floating dust collection.
Any Further About Forst Polyester Air Filter Cartridge, Please Contact Us Timely.
