Crane Electromagnetic Steel Plate Lifter Magnet
| US$1,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MW84
Purification Method
Electromigration
Preparation Method
Electrolysis of Fused Salts
Application
Energy Materials, Photoelectric Material, Medicine
Product Type
Rare Earth Magnet
Composition
Neodymium
Model Number
MW84
Place of Origin
Hunan, China (Mainland)
Dimension(L*W*H)
Customised
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Composite
Aluminum Coil
Weight
185~1250 Kg
Power
0.41~4.8 Kw
Brand
Yydls
Warranty
18 Month
DC
220V
Transport Package
Iron Case or Polywood Case
Specification
ISO9001: 2008
Trademark
CiShen
Origin
China
HS Code
8505901000
Production Capacity
100 Sets/Month
Product Description

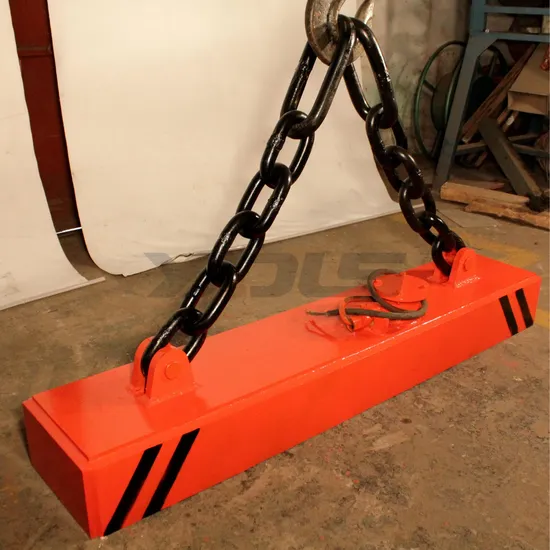

Lifting Plates Magnets MW84 SeriesSteel Plate Magnet Lifter
Steel Plate Magnet Lifter is specially design for lifting and transporting steel plates of medium-thickness. The lifting operation is safe, accurate and quick. Considering possible bending and deforming may affect safe transportation when lifting long steel plates, please use the combination of several electromagnets. As to medium-thickness steel plates(6mm-32mm),the space length of electromagnets is 3-4m,the space length of extension parts of both ends is half of the space length. According to different lifting pieces, the series can be divided into type 350 and type 400.Type 350 is suitable for medium-thickness plate factory, ship building factory, and machinery manufacturing factory, it adopts magnet regulating control method, and can lift one piece or certain pieces of steel plates of steel plate. Type 400 is suitable for transporting as many as possible pieces at a time and can design and manufacture high temperature type products used for lifting and transporting steel plate below 700ºC according to customers' requirements.
Main technical data
| Model | Mass (kg) | Power (kw) | Lifting width(mm) | ||||
| δ6 | δ8 | δ10 | δ12 | δ16 | |||
| MW84-9030T | 185 | 0.41 | 2300 | 2700 | 3000 | 3200 | 3600 |
| MW84-10535T | 330 | 0.9 | 2650 | 3150 | 3350 | 3550 | 4050 |
| MW84-14035T | 430 | 1.2 | 3000 | 3500 | 3700 | 3900 | 4400 |
| MW84-17535T | 510 | 1.5 | 3350 | 3850 | 4050 | 4250 | 4750 |
| MW84-21035T | 600 | 1.8 | 3850 | 4200 | 4400 | 4600 | 5100 |
| MW84-24535T | 720 | 2.5 | 4200 | 4550 | 4750 | 4950 | 5450 |
| MW84-12040L | 550 | 3.0 | 4550 | 3500 | 3700 | 4000 | 4500 |
| MW84-16040L | 690 | 3.2 | 3400 | 3900 | 4100 | 4400 | 4900 |
| MW84-20040 | 840 | 5.0 | 3800 | 4300 | 4500 | 4800 | 5300 |
| MW84-24040L | 90 | 6.0 | 4200 | 4700 | 4900 | 5200 | 5700 |
| MW84-13042L/G | 650 | 2.4 | 3060 | 3560 | 3760 | 4060 | 4560 |
| MW84-17042L/G | 850 | 3.7 | 3480 | 3980 | 4180 | 4480 | 4980 |
| MW84-21042L/G | 1050 | 4.0 | 3900 | 4400 | 4600 | 4900 | 5400 |
| MW84-25042L/G | 1250 | 4.8 | 4320 | 4820 | 5020 | 5320 | 5820 |
