0.5 Micron Stainless Steel 304/316 4 Bag Filter Housing for Animal Plant Fermentation Liquid& Animal Blood

0.5 Micron Stainless Steel 304/316 4 Bag Filter Housing for Animal Plant Fermentation Liquid& Animal Blood

US$677.00
1-4 Pieces
US$529.00
5+ Pieces

Basic Info.

Model NO.
CS-DF-03D
Style
Vertical
Performance
Efficient Filtration
Certification
CE
Product Name
Stainless Steel Bag Filter Housing
Working Pressure
0.5 MPa
Filtration Precision
0.5-200um
Housing Material
Stainless Steel 304/316/316L/Carbon Steel
Filter Bag Material
PP/PE/PTFE/Ss
Bag Quantity
Customized
Surface Finish
Sandblasting/Polishing
Transport Package
Wooden Box
Specification
80*50*40cm
Origin
China
HS Code
8421299090
Production Capacity
30000unit/Year

Packaging & Delivery

Package Size
118.00cm * 79.00cm * 70.00cm
Package Gross Weight
128.000kg

Product Description


0.5 Micron Stainless Steel 304/316 4 Bag Filter Housing for Animal Plant Fermentation Liquid& Animal Blood

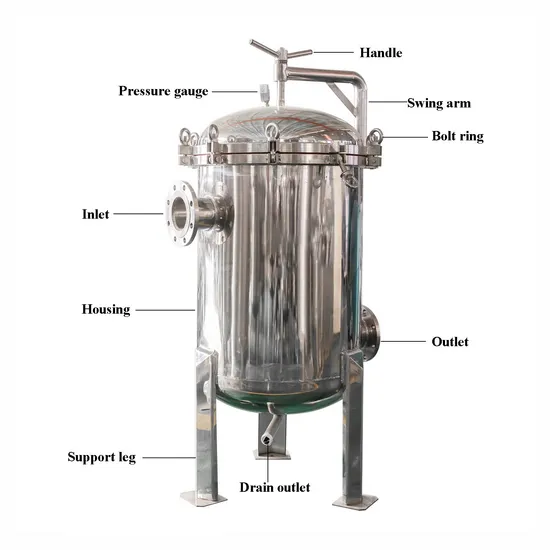

Introduction The multi-bag filter is designed to handle high-capacity filtration or large flow requirements. It offers customizable configurations with 2 to 24 bags, and a range of inlet and outlet sizes for easy connection. The design ensures adequate equipment strength and pipeline load-bearing capacity. With a quick-open mechanism, the cover can be easily removed by unscrewing the nut, making maintenance convenient. Constructed from high-quality stainless steel (304, 316L) and other materials, the multi-bag filter is ideal for large-scale filtration.
The precision of bag filter can reach 0.5um.
Key features of bag filter :
High capacity and effective filtration of large volumes of contaminants Simple operation and low-cost maintenance Clear filtration results and efficient performance
Detailed Photos Screw bolt:Stainless Steel Strengthen Bolt Spring Pressure Parts:easy to operate, better sealing, even pressure
Product Parameters
Model No. Bag QTY Filtering area (m²) Max Flow (t/h) Working pressure (Mpa) Cylinder diameter (mm ) Total height (mm)
1P1S 1 0.25 20 0.5 220 568
1P2S 1 0.5 40 220 960
1P4S 1 0.2 10 159 568
2P2S 2 1 70 456 1572
3P2S 3 1.5 105 508 1592
4P2S 4 2 140 558 1632
5P2S 5 2.5 175 608 1788
6P2S 6 3 210 658 1854
7P2S 7 3.5 245 710 1875
8P2S 8 4 280 760 1922
10P2S 10 5 350 910 2004
12P2S 12 6 420 962 2064
14P2S 14 7 490 1012 2124
16P2S 16 8 560 1112 2146
18P2S 18 9 630 1162 2225
20P2S 20 10 700 1212 2280
22P2S 22 11 770 1366 2320
24P2S 24 12 840 1416 2358

Why crowns machinery?
★We provide genuine, cost-effective materials with full inspection support.
★We assist in developing tailored, professional filtering solutions.
★Every product undergoes rigorous quality control before shipment to ensure both quality and quantity.
★Our comprehensive production planning ensures timely and efficient delivery.
★Our responsive after-sales service is available online to address any concerns, ensuring a seamless experience for our customers.
Different Models
Stainless Steel Single Bag Filter

Sand Blasting Stainless Steel Multi Bag Filter
Movable Filter System with Cart and Pump
Jacketed Bag Filter Housing

Workshop Display
Company Profile Qingdao Crowns Machinery Co., Ltd. is located in Huangdao District, on the west coast of Qingdao, Shandong Province, China. With over 10 years of expertise in designing and manufacturing a wide range of industrial filtration equipment, we are committed to providing comprehensive, high-quality filtration solutions. Our products have been exported to numerous countries worldwide, serving customers across various industries with reliable, one-stop filtration solution.
FAQ
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for filter equipment ?
A2: Yes, we can provide one-stop filtration solutions to customer according to customer's requirements.
Q3: How about the quality control in your factory?
A3: Production strictly according to CE / ISO standards. All our machines will be tested before packaging.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only the technology but the solution.
Q5: What's your payment terms?
A5: For small orders: 100% T/T in advance. For large orders: 30% T/T deposit 70% T/T balance before shipping.
Q6: What is the delivery time of the product?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the product ?
A7: All products, except for consumables, come with a one-year warranty.
Q8 : Can we use our own design?
A8: Yes, OEM/ODM supporting. Just tell us your requirements.
