Customized Size Pleated Glass Fiber Aliuminum F9 H11 H13 H14 HEPA/ULPA Hospital Cleaning Room Air Showers Fan Filter

Customized Size Pleated Glass Fiber Aliuminum F9 H11 H13 H14 HEPA/ULPA Hospital Cleaning Room Air Showers Fan Filter

US$30.00-200.00 10 Pieces (MOQ)

Basic Info.

Filtration Grade
Pre Filter
Type
Panel Filter
Construction
Panel Filter
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Core Components
Aluminum+ Glass Filter
Porosity
0.3um
Certificate
En 1822, RoHS
Material
Aluminum
Media
Fiber Glass Filter Paper
Specification
Customized
Trademark
ACDT
Origin
Suzhou, China
HS Code
8421399090
Production Capacity
5000pieces/Week

Product Description

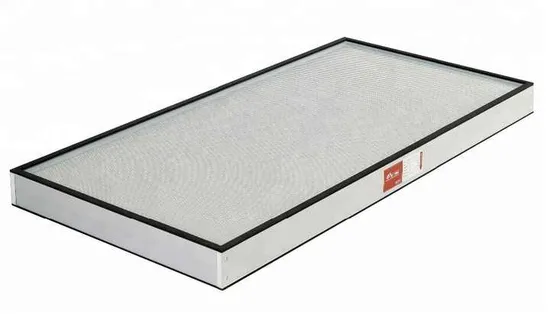

Mini Pleat HEPA / ULPA Filter is made with high-quality, pleated glass fiber media. Has low pressure drop, and superior filtration efficiency. The HEPA / ULPA Filter is widely applied in air filtration equipment such as Fan Filter Units, Air Showers, HEPA / ULPA Modules, and more.

HEPA Filter
Features Efficiency: PAO 99.99%, 99.995% at 0.3 um Test Standard: EN1822, Class H13/H14 Operating conditions Temperature: 80°C Humidity: 100% RH (no dew)

Dimension W x D x H (mm)
Air Volume Pressure Drop
H13 H14 Initial P.D. Final P.D.
CMM CFM CMM CFM mmH2O Pa mmH2O Pa
305 x 610 x 50 9 321 8 287 25.4 249 50.8 500
610 x 610 x 50 19 677 17 606
760 x 610 x 50 24 852 22 762
915 x 610 x 50 29 1033 26 924
1220 x 610 x 50 39 1389 35 1243
570 x 570 x 50 7 247 6 216 10 98 20 200
1170 x 570 x 50 15 522 13 456
1170 x 870 x 50 23 811 20 710
1470 x 720 x 50 24 842 21 737
1170 x 1170 x 50 31 1101 27 963
70 mm height is available as an option Gel seal is available as an option Customized size available
ULPA Filter
Features Efficiency: PAO 99.9995%, 99.99995% at 0.1 ~ 0.12 um Test Standard: EN1822, Class U15/U16 Operating conditions Temperature: 80°C Humidity: 100% RH (no dew)
Dimension W x D x H (mm) Air Volume Pressure Drop
U15 U16 Initial P.D. Final P.D.
CMM CFM CMM CFM mmH2O Pa mmH2O Pa
305 x 610 x 50 7 253 6 220 25.4 249 50.8 500
610 x 610 x 50 15 534 13 463
760 x 610 x 50 19 673 17 583
915 x 610 x 50 23 815 20 707
1220 x 610 x 50 31 1096 27 950
570 x 570 x 50 6 216 5 185 12 117 24 235
1170 x 570 x 50 13 456 11 391
1170 x 870 x 50 20 710 17 608
1470 x 720 x 50 21 737 18 631
1170 x 1170 x 50 27 963 23 826
70 mm height is available as an option Gel seal is available as an option Customized size available
Our Products
Our Advantages
Company Profile
Certifications Equipment & Technique
Testing instrument
Packing & shipping & FAQ Q1 /Are you a manufacturer or trading company?
We are a cleanroom equipment manufacturer.
Q2 / May l customize the size of a product?
Yes, we provide customized service based on our experiences for 25+ years.Please send the drawing and specification you requirewe can discuss the further requirement, and then we can start tomanufacture.
Q3 / What is your term of delivery?
We accept EXW, FOB Taichung, or ClF
Q4/What's the lead time for mass production?
It depends on the order quantity and the season you place theorder.
Q5 / May I have a sample before mass production?
We provide free samples for some products, and we can custom-ize the sample according to your requirements.
Q6 / How long is the warranty period?
We offer one year warranty, including spare parts are given freereplacement; electrical products are free to be replaced or repairedwithin 3 months.
