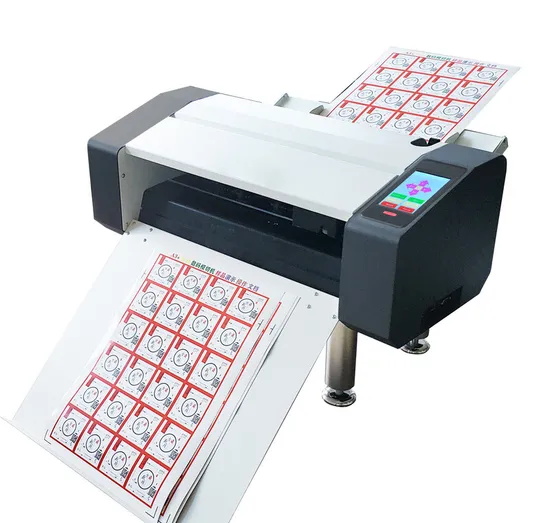

Fully Automatic Sheet Fed Cutter A3+ A3 A4 Size Multi Sheet Label Cutter Digital Sticker Sheet Die Cutting Machine

Product Description

Product Description A3 A4 die sheet cuter carriage 1. The carriage has a camera to detect the four marks in material to realize the automatic scan and then cutting automatically. 2. When the camera cannot scan the marks, it's much easier to adjust the sensor in carriage, and then the camera can scan correctly. The A3 A4 die sheet cutter has three interfaces : USB, Serial port and U disk. 1. The U disk interface can make offline working and reach the repeat function more convenient 500 times in one operation.The machine can detect the files in U disk and start cutting. It's much more convenient when there is no computer right side. 2. The USB and serial port are connecting with the computer, and send the file made directly. It applied widely in office and home. Power supply cable: AC220V / 110V, 50Hz Notice: It would be better when you unplug the power supply cable to protect the machine main board Specification

Model Name	DSA-AN3
Media Way	Auto sheet feeding system with automatic contour cutting
Maximum Cutting Area	310*480mm
Maximum Cutting Speed	1000mm/s
Control Panel	4.3inch Full touch screen
Driver	High speed, big power step motor, micro-step driver
Cutting Force	10-1000g (adjustable)
Package Size	810*540*340 mm
Interface	U disk , serial port , USB
Main Board	32-bit ARM7 CPU ,128Mb,high-speed cache memory
Mechanical Precision	0.025 mm
Min sheet size	10mm width* length is unlimited
Max sheet size	330mm width* length is unlimited
Cutting function	die cut and full cut (according to cutting force )

Advantages:
1.Light weight, space saving design, full metal machine body, solid and practical workmanship.
2.Auto paper feeding system to ensure continuous multi-sheet cutting, maximum continuous cutting 30pcs.
3. AAS automatic contour cutting, Various materials can be scanned , economic photo paper, T-shirt transfer paper, photo quality inject card, stickers, glossy paper.
4. Automatic positioning and cutting, with U DISK interface, repeat function reach to 500 times in one operation.
5. Big power motor, faster speed, working noise lower than 60 db.
6.The newest ARM processor, smooth surface and accurate cutting.
7.4.3inch full touch screen for easier operation.
8.Special setting in carriage to ensure machine cuts well even the material is tilt up. Effect Display Company Profile
