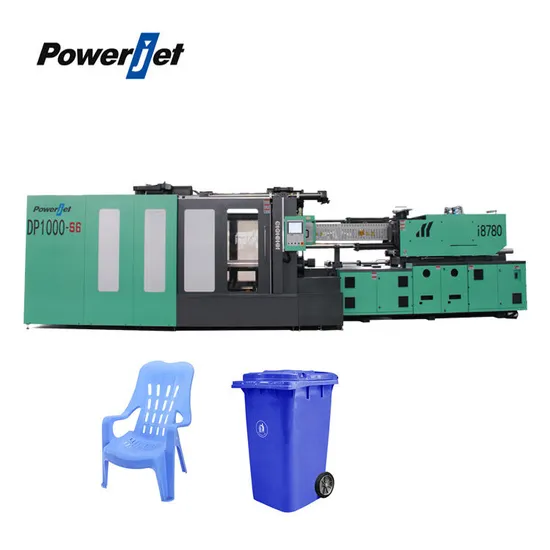

Powerjet New Design 1600 Ton 1600 Tons 1600ton 1600t Plastic Injection Molding Moulding Machine

Product Description

Two-Platen Injection Molding Machine
DP Series Two-Platen Large Injection Molding Machine For Deep Cavity Products Like: Home Appliances, Car Parts, Outdoor Dustbin, Plastic Pallet, Plastic Crate, etc.
FEATURES:
1:Saving More Space - Small footprint, bigger mold carrying capacity.
2:Saving More Power - Servo system configuration, more energy-saving ability.
3:High Precision - Less production flash.
4:Lower Noise - Small hydraulic impact, lower noise and oil consumption.
5:More Automation - Accurate mold positioning meets the needs of automatic pickup and insert.
6:Longer Lifetime - Even mold force insures long service life.
7:High Rigidity Slider - With better orientation and parallelism, can carry heavier molds.
8:Step-less Adjustment - Ensures the accurate and stable clamping force.
9:High Rigidity Clamping Frame - Makes the whole machine running more smoothly.
10:High Precision Linear Guide - Faster injection response and accurate positioning.
11:Variety Of Screw Available - Adapts to different types of products.
12:Higher Standard Configuration - With 12" colorful display screen, CPU memory upgrade to 1.4G.
Product Description
Company Information

LAMPING UNIT	Clamping force	KN	10000
	Opening stroke	mm	1600-2300
	Max.datlight	mm	3000
	Platen size	mm	2200*2100
	Space between bars	mm	1610*1450
	Max.mold height	mm	1400
	Min.mold height	mm	700
	Ejector stroke	mm	380
	Ejector force	KN	330
	No.of pins	PCS	33
	Max.mold weight	T	34
INJECTION UNIT	Screw diameter	mm	130
	Screw L/D Ratio	L/D	23.7
	Injection Pressure	MPa	193
	Shot volume	cm3	8960
	Shot weight (ps)	g	7996
		oz	282
	Injection rate	g/s	915
	Plasticizing capacity	g/s	138
	Screw stroke	mm	450
	Screw speed	rpm	167
POWER UNIT	Hydraulic system Pressure	MPa	17.5 24
	Pump motor power	KW	32.7+41+41+11
	Heater power	KW	76
GENERAL	Oil tank capacity	L	2600
	Machine weight	T	75
	Machine dimensions (L*W*H)	m	12.5*4.5*3.5

Packaging & Shipping
Our Services

FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years of Experience In Manufacturing Injection Molding Machines and Blow Molding Machines.
Q2: Is it possible to send an engineer to install and commission the machine, even train our workers?
A2: Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after-sales service and technical support. Therefore, we need you to prepare an invitation letter for the visa before shipment. However, please be noted that all costs for visa, travel, the hotel should be paid in advance by customers.
Q3: If we buy your machines, is there any warranty?
A3: Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.


Please feel free to consult us to know more information.
Thanks~
