China Manufacturer Low Price Concrete Batching Plant

China Manufacturer Low Price Concrete Batching Plant

US$19,990.00 1 Set (MOQ)

Basic Info.

Type
Concrete Mixing Plant
Shotcrete Type
Semi-Dry
Machining Process
Delivery
Structure
Rotor Type
Productivity
60m²/h
Feeding Height
3.8m
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Cement Silo
BS50
Screw Conveyou
Lsy219
Specification
105kw
Trademark
TOBEMAC
Origin
China
HS Code
8474310000

Product Description

Production Description

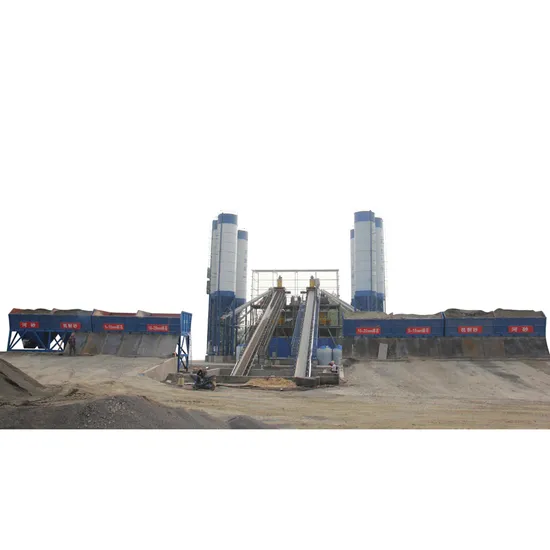

Stationary concrete batching plant:

TOBEMAC factory was established in 1991 from China, mainly producing concrete mixing, brick making machine, concrete pump, concrete mixing plant. The concrete mixing plant exports 100 sets every year, and has many customers in the Middle East and Africa. We have a perfect technical team to help customers solve problems all day long, as well as a perfect after-sales department to meet customer needs.
TOBEAC's fixed concrete batching plants are widely used in medium and large construction projects and infrastructure projects such as commercial and residential properties, road construction, commodity concrete supply, etc. It is the ideal choice for producing high quality concrete in large demand.
Fixed concrete batching device consists of aggregate batching system, aggregate conveying system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyor belt, cement bin and so on. Suitable for construction site and commercial concrete products.
The fixed concrete batching device can be divided into skip lifting type and belt conveyor according to the aggregate feeding mode. The capacity of concrete batching device of skip hoist can reach 25/35/50/75 m3/h, and the capacity of concrete batching device of belt conveyor can reach 60/90/120/180/240 m3/h.
1.Fixed concrete mixing plant
Brick factory supporting concrete mixing station
Broken bucket with concrete mixing station
Characteristics of concrete batching device compared with belt batching device:
1. Cost saving;
2. Easy to install;
3. Easy to move to other workplaces;
4. Save Labour.
2.Mixing station main accessories
3.Mixing station type parameters
Model HZS35 HZS60 HZS90 HZS120 HZS180
Production Capacity(M3/h) 35 60 90 120 180
concret Mixer JS750 JS1000 JS1500 MAO3000/2000 MAO4500/3000
Aggregate Feeding Mode Belt Conveyor Belt Conveyor Belt Conveyor Belt Conveyor Belt Conveyor
Aggregate Batcher PLD1200 PLD1600 PLD2400 PLD3200 PLD4800
Max.Aggregate Size(mm) 60/80 60/80 60/80 60/80 60/80
Discharging Height(m) 3.8 4.1 4.1 4.1 4.1
Aggregate Weighing
Accuracy%
±2 ±2 ±2 ±2 ±2
Cement Weighing Accuracy$ ±1 ±1 ±1 ±1 ±1
Water&Additive Weighing Accuracy(%) ±1 ±1 ±1 ±1 ±1
Total Weight(T) 12T 28 40 65 88
Total Power (kw) 105 110 156 200 260
Control System Computer Computer Computer Computer Computer

4.Mobile mixing plant
Mobile mixing plant does not need to do basic buildings can be used
Our Services
Pre-sale Service
1. Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements; 3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
