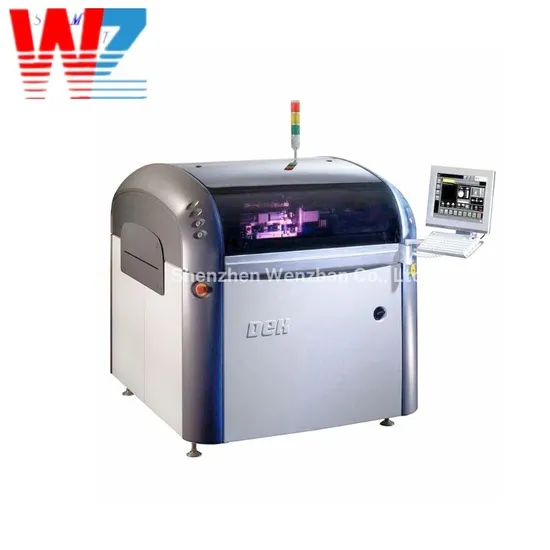

SMT Solder Paste Printer Dek Horizon 03IX Screen Printer Machine
| US$7,550.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DEK Horizon 03iX
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Application
printed Circuit
System Supported
Windowsxp32
Maximum Print Area
510mm* (X) X 508.5mm (Y)
Substrate Handling Size(Minimum)
50mm (X) X 40.5mm (Y)
Substrate Handling Size(Maximum)
510mm (X) X 508.5mm (Y)
Substrate Thickness
0.2mm to 6mm
Width Adjustment
Programmable Motorized Rear Rail
Delivery
UPS/TNT/FedEx/DHL
Quality
100% Tested
Transport Package
Wooden Case
Specification
Approx. 690 kg
Trademark
DEK
Origin
China
HS Code
8443322900
Production Capacity
100
Packaging & Delivery
Package Size
130.00cm * 120.00cm * 160.00cm
Package Gross Weight
710.000kg
Product Description
SMT Solder Paste Printer Dek Horizon 03iXSpecification
| Standard Configuration | Specification |
| Machine Alignment Capability | >2 Cpk @ +/- 12.5μm, 6 Sigma # |
| Process Alignment Capability | >2 Cpk @ +1- 25μm, 6 Sigma # |
| Core Cycle Time | 12 secs (11 secs with HTC option) |
| Maximum Print Area | 510mm* (X) x 508.5mm (Y) |
| Printer Construction | One piece optimized welded frame |
| ISCAN ™ Machine Control | Motion control using CAN BUS network |
| Operating System | Windows XP |
| Operator Interface | Colour TFT touch screen display, keyboard and trackball with DEK Instinctivsoftware. Machine mountable on either left or right hand side. |
| Camera | Green digital camera, using IEEE 1394 interface.Multi channel. LED lighting.FOV 5mm x 8.5mm |
| Camera Positioning | Rotary motors and encoders with 4 micron resolution |
| Squeegee Pressure Mechanism | Software controlled,motorized |
| Stencil Positioning | Manual with screen depth adjuster |
| Stencil Alignment | Motorised via actuators X,Y and Theta |
| Squeegee | Clamped double training edge squeegee (1 set included) |
| Tooling | Magnetic tooling pins 19mm diameter x 15 4mm diameter x15 |
| Machine Interface | Upline and downline FMI included |
| Connectivity | RJ-45LAN (networking) and USB2 interface available |
| Tri Colour Beacon | Programmable with audible alarm |
| Documentation | Hard copy manuals comprising:Operator,Installation,and Electrical Drawings. On board technical manuals and tutorials supporting operator functions. CD containing manuals and tutorials. |
| Transport System | Specification |
| Type | Single piece with 3mm round transport belts, front rail fixed |
| ESD Compatibility | Black transport belts and guides with surface resistivity of greater than 10° ohms |
| Width Adjustment | Programmable motorized rear rail |
| Transport Direction | Left to right Right to left Left to left Right to right |
| Substrate Handling Size(minimum) | 50mm (X) x 40.5mm (Y) |
| Substrate Handling Size(maximum) | 510mm (X) x 508.5mm (Y) |
| Substrate Thickness | 0.2mm to 6mm |
| Substrate Weight (maximum) | 1kg |
| Substrate Warpage | Up to 7mm including substrate thickness |
| Substrate Fixture | Patented over the top clamps |
| Substrate Handling Features | Soft rail lift/and Board clamp regulator |
| Substrate Underside Clearance | Programmable 3mm to 42mm |
