Full Drink Beverage Automatic a to Z Pure CSD CO2 Aquajuice Pet Plastic Bottle Bottling Small Filling Purification Mineral Water Machine

Full Drink Beverage Automatic a to Z Pure CSD CO2 Aquajuice Pet Plastic Bottle Bottling Small Filling Purification Mineral Water Machine

US$15,000.00-150,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DXGF series
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Plunger
Filling Principle
Isobaric Filling
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging
Bottle
Packaging Material
Plastic
Driven Type
Electric
Quality
High Technilogy
Condition
New
Voltage
Customized
After-Sales Service Provided
Online Support, Video Technical Support
Capping
Advance Capping Technology
Transport Package
Wooden Packing
Specification
CE, ISO, UL
Trademark
LiDLi
Origin
Jiangsu
HS Code
8422301090
Production Capacity
60PCS/Year

Packaging & Delivery

Package Size
600.00cm * 300.00cm * 550.00cm
Package Gross Weight
5000.000kg

Product Description

Product Description Turnkey Project Automatic Pure Water Juice CSD Wine Beverage Filling Machine

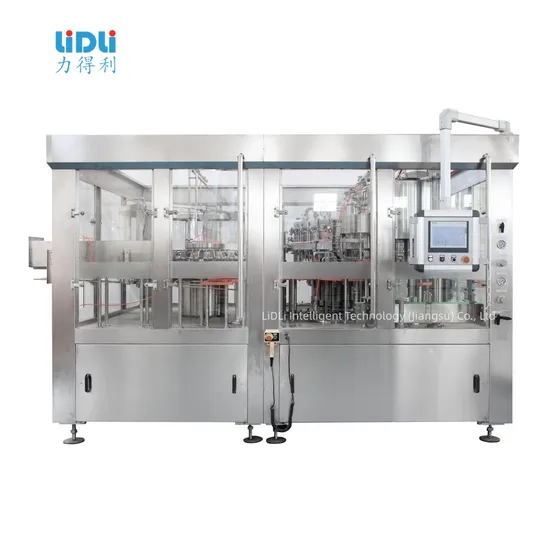

DXGF series isobaric filling machine is a 3-in-1 filling machine that combines rinsing filling capping in one machine. The equipment is innovated and developed based on the introduction, digestion, and absorption of foreign advanced technology and according to the gas-bearing beverage filling process requirements, It is mainly used for soft drinks, cola, sparkling wine, mineral water, etc. The machine has a reasonable structure, safe, reliable, and easy to maintain and it is the ideal equipment for a beverage-filling factory.
Technical structure feature:
a. Rinsing part:
☆ It is rotary type, mainly sued for rinsing new bottles send the bottles to the filling machine.
☆ Renew stainless steel clip, simple structure, convenient adjustment; small area touch with bottle mouth, avoid the secondary pollution for the bottle mouth efficiently.
☆ Bottle rinsing machine inlet pipe equipped with pressure gauge.
☆ Bottle rinsing machine equipped with water collector to callback rinsed water.
b. Filling part:
☆ Filling valve adopts a constant pressure mechanism valve, filling fast and with high accuracy of filling liquid level.
☆ The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, grease can lubricate centralizing automatically, adopts transducer to the speed of the main motor to control, the machine adopts step-less frequency conversion timing. The material for the whole platform and frame is carbon steel with stainless steel outside.
☆ The machine is automatically controlled by PLC, fault line display, like bottle block, cap shortage, etc.
c. Capping parts:
The capping rotates through a reduction box drive rotational wheel, which makes the cap leave the hopper with the function of centrifugal force. There is a separation device for the right cap and reverse cap at the entrance, when the reverse cap passes, the cap automatically falls into and returns to the pipeline, and blow the reverse cap automatically to the hopper through wind power. Only the right cap could enter into skids smoothly, the volume of the cap inside of the hopper will be automatically inspected by an electric switch to control the cap conveyor, and that ensures the best effect of cap down. When the right cap enters into the slide way, it could smoothly enter into the cap feed plate, to prevent accidents, there is an anti-reverse cap drive plate device to match with the slideway, to ensure that access to the cap feed plate is correct. The slide way is also equipped with a pair of photoelectric switches when testing no cap, then an immediate halt to the host. In order to effectively remove non-anti-theft ring bad caps and clean up additional caps in the hopper, there is an active exit in front of the hopper exit that can meet this function.
Main Specifications:
Components Standard Components
Touch screen SIEMENS (Germany) / MITSUBISHI (JAPAN)
PLC SIEMENS (Germany) / MITSUBISHI (JAPAN)
Inverter MITSUBISHI (JAPAN)/Danfoss(Denmark)
Contactor SCHNEIDER (France)
Breaker SCHNEIDER (France)
Air switch SCHNEIDER (France)
Pneumatic components CAMOZZI (Italy)/SMC(Japan)
Photocell switch SICK/TURCK (Germany)/OMRON/KEYENCE(Japan)
Proximity switch SICK/TURCK (Germany)/OMRON/KEYENCE(Japan)
Detailed Photos
Product Parameters
No Model Machine name Production capacity Power
(kW)
Low-pressure air consumption
0.8MPa
(Nm3/min)
Application bottle type and range
1 DXGF14-12-5 CSD filling machine 2000BPH
(500ml)
2.25 0.8 350ml-1500ml
(PET bottle)
2 DXGF18-18-6 CSD filling machine 4500BPH
(500ml)
2.75 0.8
3 DXGF24-24-6 CSD filling machine 8000BPH
(500ml)
3.35 0.8
4 DXGF32-32-8 CSD filling machine 12000BPH
(500ml)
5.27 0.9
5 DXGF40-40-10 CSD filling machine 14000BPH
(500ml)
5.87 1.2
6 DXGF50-50-12 CSD filling machine 17000BPH
(500ml)
9.25 1.2
7 DXGF60-60-15 CSD filling machine 20000BPH
(500ml)
12.2 1.2
8 DXGF72-72-18 CSD filling machine 26000BPH
(500ml)
15 1.2
9 BDXGF8-8-3 CSD filling machine 1000BPH
(500ml)
3 0.5 350ml-1500ml
(Glass bottle)
10 BDXGF18-18-6 CSD filling machine 4500BPH
(500ml)
5.27 0.6
11 BDXGF24-24-8 CSD filling machine 8000BPH
(500ml)
5.27 0.8
12 BDXGF32-32-10 CSD filling machine 12000BPH
(500ml)
5.87 1.2
13 BDXGF40-40-12 CSD filling machine 14000BPH
(500ml)
5.87 1.2
14 BDXGF50-50-15 CSD filling machine 17000BPH
(500ml)
6.87 1.3
15 BDXGF60-60-15 CSD filling machine 20000BPH
(500ml)
7.67 1.3
16 BDXGF72-72-18 CSD filling machine 26000BPH
(500ml)
9.57 1.3
Packaging & Shipping Installation Instructions We provide technology training for free, which contains the operation and maintenance training of the machine in the customers' factory.
After Sales Service 7*24 Online Service
if you have any problem with our product, you can inform us by Email, we will reply to you at once when we get it and offer you a good solution to solve the problem.
Company Profile China's high-end liquid(beverage) packaging machinery R&D and manufacturing base, is committed to building smart factories with turnkey solutions for liquid(beverage) companies. Since its founding, LiDLi, under the concept of "Driving development through innovation and winning the market with quality", has been providing global customers in the five fields of beverages, dairy, liquors, condiments, and daily chemical products with complete sets of intelligent equipment, including pretreatment system, combi block, blowing system, filling system, secondary packaging system, etc., realizing the dream of "Made in China, Made for World".

From the support of the formulation process, the three-dimensional design of the product container, to the overall layout of the users' factory, from the R&D and design of core equipment, the installation and commissioning of engineering projects, to the end customer professional training, LiDLi has more than production lines in more than countries and regions around the world.

By adhering to high-end positioning, technological innovation, forward-looking layout, its advanced technologies. LiDLi will continue to enhance its design creativity, product quality, and brand reputation to become a widely respected global leading supplier of liquid packaging solutions.
Our Advantages 1. We have a professional bottle shapes design team and manufacturing service according to customers' requirements.
2. We can provide you with production technology and beverage formulation.
3. We can provide you with a professional factory layout according to your final equipment list.
4. We provide technology training for free, which contains the operation and maintenance training of the machine in the customers' factory.
5. We guarantee all our machines, and parts for two years. After the warranty, we also can offer you the parts for replacement at our bottom price.
