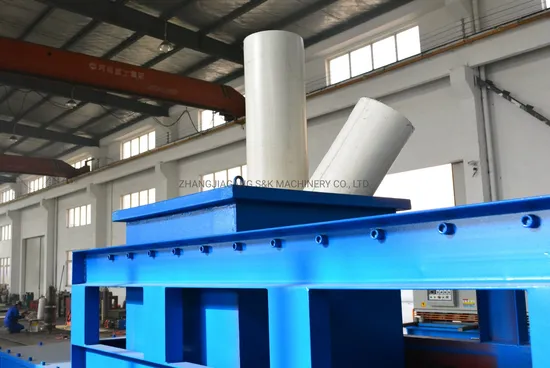

Large Diameter Pipe Medical Pipe Tube Medical Wasted Recycling Shredding Crusher Machinery

Large Diameter Pipe Medical Pipe Tube Medical Wasted Recycling Shredding Crusher Machinery

US$5,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Screw
Single/Double
Automation
Automation
Computerized
Computerized
Certification
GMP, ISO9001:2008, CE
Color
Customized
Material of Rotor
45# Steel
Rpm
75 Rpm
Materials of Rotary Blades
D2
Warranty
1 Year
Voltage
380V /220V Customized
Usage
Different Material
Hardness of Blades
HRC558-60
Noise
<85
PLC
Simens
Contactor
Schneider
Cooling Way
Air Cooling
Max Pressure
10 MPa
Flame
Q345b
Starting Mode
Star Triangle Start
Transport Package
Film/Wooden Case
Specification
2860*1900*2330mm
Trademark
S&K
Origin
Jiangsu
HS Code
84778039
Production Capacity
30 Sets Per Month

Product Description

Single/double shaft shredder for PP/PE/PVC/ABS/PET plastic Film woven/jumbo bag car bumper/wood chipper/glass /container/block in hot sale
Prodcution description :
1. Single shaft shredder has characters as follows: single shaft shredder for plastic pipe, properties as follows: strong, durable. It is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs. We can provide all kinds of feed hopper; low speed rotary cutter in accordance with customer needs , which will be low noisy and energy saving.
2. Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block. The knife block has 4 blades, can be replacing the use of. The knife block along the axis of the base is in multiple rows into type V, and fixed with screws in the radical axis, rotated with the based shaft together, finally comprise a knife disc. The two static knife is fixed on the machine frame. The material is sent to the cutter by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsive force is large and uniform. It is applicable to the recovery of a variety of bulk solid materials, refractory materials, irregular plastic containers and plastic barrels, tubes, films, fibers, paper etc. Spindle speed is 45 ~ 100 rpm/min.
3. We can offer a variety of rotor configurations to suit different applications.Such as:High Performance Rotor,Hard Material Rotor and Soft and Film Rotor.
4. When customers choose the rotor, we can also offer different knives holder to suit different requirement. Such as:Welded Knife holders,Assembled Knife holders and CNC cutting knife holders.

1
Model
SKR600
SKR700
SKR800
SKR1000
SKR1200
SKR1500
2
Diameter of rotor(22mm)
280
280
400
400
400
450
3
Speed of rotor(r/min)
75-80
75-80
75-80
75-80
75
75
4
Mesh size(mm)
30-100
30-100
30-100
30-100
30-100
30-100
5
QTY of rotary knives(pcs)
26+4
33+4
34+4
48+4
64+4
76
6
QTY of fixed knives(pcs)
2 or 4
2 or 4
2 or 4
2 or 4
2 or 4
2 or 4
7
Motor(kw)
22
37
45
55
75
110
8
Hydraulic motor(KW)
2.2
2.2
3
4
5.5
7.5


Diferent material by shredder :before----after
Factory overview:
Our service:
Pre-sale :
We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals
In-sale :
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
• Training course for the technician so that the installation is safe and standard
After-sale :
• For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
• We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.
• We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
Competitive Advantage:
1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer's ticket, visa, room and board, $80 per day for one people as allowance.
2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines.
S&K Machinery has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
