US$680.00-4,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
UBT-06 environment controller for poultry
Usage
Chicken Broiler Breeder Farm House
Heating and Ventilation Equipment Type
Ventilation Fans;Cooling Pad;Air Inlet;Gas Heater
Epidemic Prevention Equipment
Spraying Line
Computerized
Computerized
Certification
ISO9001:2008, CE
Main Filling System
Feed Silo, Feed Hopper
Feeding Line System
3 or 4 Feeder Per 3m
Drinking Line System
12 or 15 Nipple Per 3m
Ventilation System
36′ Box Fan, 50 Box Fan, 50 Cone Fan
Cooling Pad System
Cooling Pad & Aluminum Frame
Environment System
T607, T616, Image II,Retom2000
Heating System
Gas Heater,Thermal Umbrella
Spraying System
Fogging Line
Curtain System
Side Wall Curtain
Drinking Rage
>100m to Be Segmented
Motor Power
0.75kw, 1.1kw, 1.5kw
Environemnt Controller Type
Agrologic T607,616,Image II; Rotem
Transport Package
Standard Packages
Specification
Customermized
Production Capacity
300 Set Environment Controller for Poultry
Product Description
Automatic Environment controller for poultry house
[U-Best]
Welcome friends from all over the world! Let us become better farmers. Product Parameters
Eg: | 110m x 12m chicken house |
| One set Agrologic T 607/610/616/Image II, Rotem AC-2000 |
| 20000 chickens |

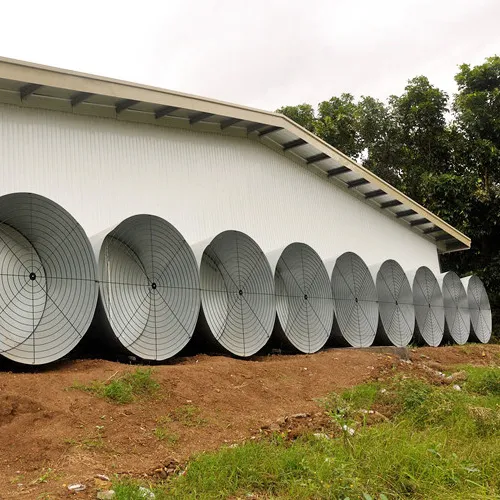

(Automatic Environment controller for poultry house picture of chicken farm)
Product Description
Full set automatic poultry/chicken/breeder/hen/duck farm equipment/machine for broiler
No.1 | Main feed line system |
No.2 | Automatic pan feeding syste |
No.3 | Automatic nipple drinking system |
No.4 | Ventilation system |
No.5 | Cooling pad system |
No.6 | Environment controller system |
No.7 | Foggy system |
No.8 | Heating system |
Environment controller system
The system can control the temperature in chicken house by controlling ventilation fans, cooling pads, air inlets and heaters automatically, also control the water, feed and light.
a. Environment controller:
We have Israel imported controller and domestic brand controller for your choice, they have different functions and different prices.
b. Temperature sensor and humidity sensor
c. Control boxes
d. Light system and wire system T607:
1.Climate controllers reliable,user friendly micro controllers especially designed for broiler house.
2.Has built 8 in relays for alarm output, heater, 5 groups of fan, cooling equipment.
3.LCD screen makes the computer and user communicate easily.User could input data to program the micro computer.
4.Several relays there.You could add relays to control more equipment.
5.Available to control heating, ventilation, cooling, air inlet.
TECHNICAL SPECIFICATIONS:
POWER SUPPLY: 220V AC
INPUT: 4 analog temperature sensors,
1 Humidity sensor 0-10V, 2 digital inputs
OUTPUT: 8 dry change over contact max.
220V /2 Amp
DISPLAY:6 digit 7 segment display
ACCURACY:+/-0.2°C(1°F)1%H
ENCLOSURE: IP55
MEMORY:Memory with power fail
protection and non-erasable memory
CALIBRATION: Auto calibration of connected sensors
T616:
1.Has 12 relays for alarm output, heating, 7 groups of fan, cooling, air inlet, curtain.
2.Control equipment via temperature or pressure, available to control heating, ventilation, cooling, air inlet, curtain.
3.Usually designed for breeder house.
Function:
Agro vent minimum ventilation
Tunnel ventilation
Inlet control
Cool curtain control
Static pressure control
Alarm
Light control
Dusk-dawn control
Fan speed control
Water control
Automatic temperature
reduction curve
Automatic minimum
ventilation curve
Daily Data
Water count
Feed count
Temperature
Humidity
Image ll:
1.The all-in-one Image II is the most flexible and robust controller for poultry raising. Smart and easy-to-use, it's designed to handle all your housing needs for the long haul.
2.ImageII has a large 7″, user friendly color touch display
3.ImageII comes with an expandable relay box using sets of 8 relay output modules for up to a maximum of 64 relays
4.ImageII includes 6 analog 0 to 10 Volt outputs for variable fan speed, heating, flap control and light dimming.
5.The all-inclusive unit provides complete climate control, feed silo weighing, batch weighing, automatic bird weighing and egg counting.
6.The controller is designed for use in broilers, pullets, breeders, layers and swine houses, flexibly controlling and regulating all functions of operations including variable speed fans, light dimming, static pressure, humidity, CO2 and more. Temperature reduction and weight curves are included as a standard.
7.ImageII engineered to give you peace of mind, with simple remote control via PC, Web, SMS, Smartphone or Tablet.
AC2000:
1.LCD screen and LCD keyboard could show 20 data/2 rows, which make the computer and user communicate easily.And the keyboard is input data to program the micro computer.
2.Relays. 20 relays to control equipment.
3.Birds weighting. At most, two weighting system of RBS-1 could be installed.
4.Heating section,sensor. At most, you could have three heating sections. It could control each heating section precisely.One integrated humidity sensor and one static pressure sensor, six temperature sensors could be installed to collect all data in the house.
5.Communication. AC2000 could exchange data by connecting MUX-2 with computer.
Function:
Alarms and data in real time enable optimal management of your controllers, 24/7.
Remote controller configuration enables centralized management of all farms from one computer.
Support for multiple communication technologies (telephony, cell phone, DSL, radio, line modem, satellite, text, messages,email,voice card, pager or internet) ensure message transmission.
Text messages ringtones ensure that you don't miss alarm messages.
Status reports provide critical infor mation on house functions and ani mal statistics.
Text messages sent in a variety of languages
Local communication via wired or wireless communication
Test functions to ensure that text and ringtones function as required
