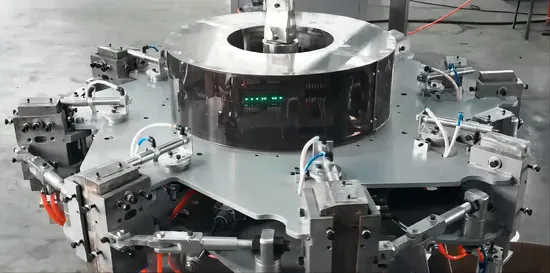

Rotary Blowing Molding Machine Syjjj1-65-8 Made in China
| US$11,500.00-15,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
SYJ1-65-8
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Avilable
Type of Shipping
Sea Transportation
Transport Package
Wooden Packing
Specification
4100mm*4000mm*2250mm
Trademark
SJ
Origin
China
Product Description
Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.
| CODE | SYJ1-65-8 |
| Maximum product capacity | 330ml |
| Output (PCS/hour) | 2000(330ml) |
| Voltage and frequency converter | 380V/50HZ |
| Screw diameter (mm) | 65 |
| Screw length-diameter ratio | 1:25 |
| Screw speed (r/min) | 10~90 |
| Screw material | 38CrMOAlA |
| HDPE extrusion capacity (kg/h) | 75 |
| Modular number | 1 |
| Die head heating section | 1 |
| Die head heating rate (KW) | 1.7 |
| Screw heating section | 3 |
| Screw heating rate (KW) | 10.5 |
| Extrusion motor attack rate (KW) | 15 |
| Stroke rate of Rotary motor (KW) | 1.5 |
| Total installed attack rate (KW) | 28.5 |
| Extruder size (L X W X H) | 2.5mX0.8mX2.03m |
| Rotating machine dimensions (L X W X H) | 2.0mX1.8mX1.38m |
| Theoretical weight of extruder (KG) | 700 |
| Theoretical weight of rotary machine (KG) | 1000 |
| Average energy consumption (KW/h) | 16 |
| Average energy consumption (water m3/h) | 2 |
| Average energy consumption (gas m3/min) | 2.5 |
