Hollow Block Solid Brick Paving Block Curbstone Moulds for Concrete Block Making Machines

Hollow Block Solid Brick Paving Block Curbstone Moulds for Concrete Block Making Machines

US$1,500.00-12,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Customizing Dimensions
Certification
ISO
Customized
Customized
Automatic Grade
Customized Moulds
Type
Block Machine Moulds
Surface Hardness
HRC58-62 After Heat Treatment
Fabrication Way of Mould Shoe
Wire Cutting by CNC Machine
Heat Treatment
Carburizing, Nitriding and Quenching
Mould Frame
55# Manganese Steel
Tamper Head
16# Manganese Steel
Mould Surface Strength
HRC61
Mould Core Strength
HRC33
Life Span
100, 000 ~120, 000 Cycles
Category
Concrete Mould
Transport Package
Standard Ocean Packing
Specification
Customized
Trademark
HAWEN
Origin
Quanzhou City, Fujian, China
HS Code
84748090
Production Capacity
1000sets/Year

Product Description

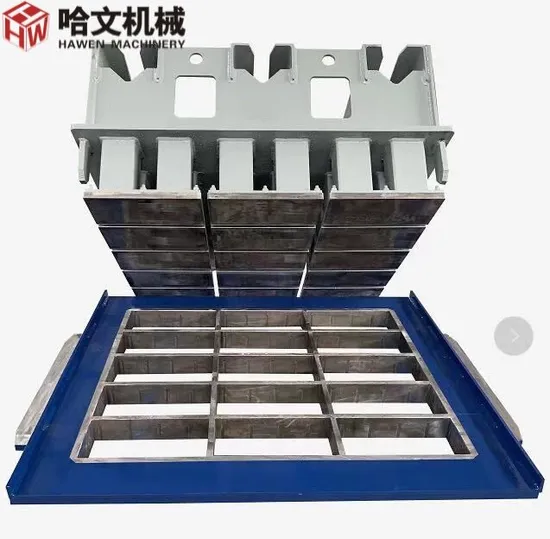

Hollow block solid brick paving block curbstone Moulds for Concrete Block Making Machines
Hawen moulds have been widely used in the market for several of years.Our moulds extensive use of special alloys, tight manufacturing tolerances, and the gap between the upper and lower sides of the mold is reasonable through a wire cutting process, with a gap of 0.8-1mm. Material hardening heat treatment and other processes such as oil quenching, set our molds apart from others in the industry.
Unique mold accessories like horizontal core pullers, electrically heated demolding shoes and movable component molds are all available from us.
Our molds are innovative, versatile, and capable of making the highest quality concrete products.We can also custom manufacture molds for virtually any other machinery manufacturer in the industry,such as Tiger block machine,Hess Block Machine,Mass Block Machine,Zenith Block machine etc..
Professional and Unique Heat Treatment
The use of the advanced multi-functional heat treatment,all processes are controlled by the PLC, without any manual intervention, and the result of heat treatment is ensured from multiple angles.
All Moulds are trearted by Carburizing, Nitriding and Quenching to guarantee the hardness of the mould core and tamper head plates to ensure long life time.
Precision depends on details of each manufacturing process. High end processing equipments to ensure high precision and durability of moulds.
Different shapes of Concrete Products Moulds available based on customized manufacturing drawings.
Our service:
The moulds drawing will be provided to customer for approval according to customer machine pallet size,and the material to be used in the mould will be provided after the contract is confirmed.
Fabrication process will be shared with customer during the mould production.
We can offer you the optimum Moulds for versatile selection of Paving and block,
welcome to contact our sales team for mould solution!
