Stone Impact Crusher Limestone Granite Crushing Line

Product Description

High-Efficiency Widely Used 50-300tph Stone Impact Crusher for Sale China Manufacturer
Product Description

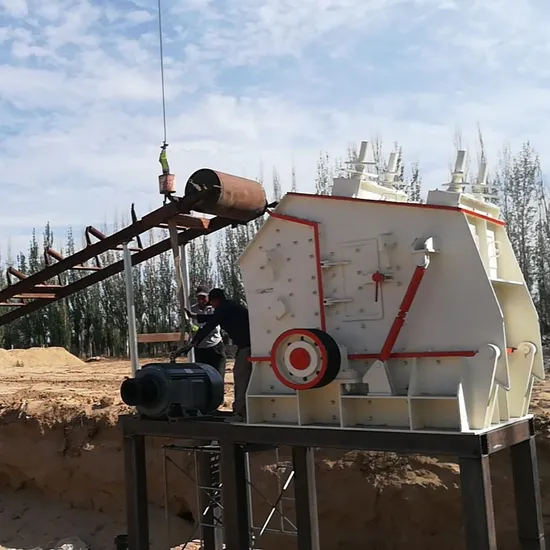

Mining Machine Stone Impact Crusher Impact crusher is a crushing machine that uses impact energy to crush materials. The crushing
equipment can handle various materials with a particle size of not more than 1000 mm and a
compressive strength of not more than 350 MPa. It has the characteristics of large crushing
ratio, high crushing efficiency and convenient maint-enance. The product is a cube, which is
an ideal processing equipment for high-grade road surface and aggregate for hydropower
construction. Impact crusher is widely used in highway construction, water conservancy
engin-eering, and construction stone processing with its stable performance
and good performance.
Working Principle
PF Impact Crusher breaks materials with impact force. When working, driven by a motor, the
rotor rotates at a high speed. When materials enter the working area of hammer, they are
crushed under the high-speed shock. Then broken materials are thrown onto the lining plate
for another crushing. Finally, qualified materials are discharged from the opening. Adjusting
the gap between the impact rack and rotor rack can change the granularity and shape of
finished products.

Model	Rotor Size*length (mm)	Feed Opening Size (mm)	Max. Feeding Size (mm)s	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PF-1007	Φ1000×700	400×730	300	35-50	55	2400×1558×2660
PF1010	Φ1000×1050	400×1080	350	50-80	4-75	2455×2086×2800
PF1210	Φ1250×1050	400×1080	350	60-120	6-110	2590×2050×2800
PF1214	Φ1250×1400	400×1430	350	80-160	6-132	2590×2400×2810
PF1315	Φ1300×1500	860×1520	350	120-260	6-200	2930×2760×3050
PF-1515	Φ1500×1500	1145×1520	≤500	220-280	280kw	2690×2049×2698
PF-1520	Φ1520×2000	1245×2050	700	300-550	315-440	3581×3560×3865

Company Profile
Henan Turui Machinery Co., Ltd, is a machinery manufacturing enterprise integrating design, research and
development production, sales and installation. The products are machines which mainly used for mines,
cement and building materials. The company covers an area of 80,000 square meters, building area of 20,000
spare meters. The workshop has more than 40 sets of boring-milling machine, gear hobbling machine, vertical
lathe, travelling crane and etc. it formed an independent technology process production line. Now the company
has workers more than one hundred, includes 8professional engineers. 75% of the total workers have participated
the professional technical training.
The products have passed the international quality system certifications of 1S0900, CE and GHOST. With the
distinctive design,professional team, strict management and top-quality equipment, we try to produce the high-quality
products to meet the demandsof market. The products have been sold to twenty provinces and exported to more
than one hundred counties and areas.
The company takes very seriously to technical exchanges and cooperation domestic and overseas.
Now it has established good technical R & D cooperation relations with many domestic key scientific research
institutions and the United States, Japan, and Taiwan China, and established advanced domestic and foreign
machining processing lines. It fully guarantees the technical
advantages of the company's various products in the industry. Turui company adheres to the tenet of "pragmatic
innovation,honesty, superior quality, excellent service", with the ultimate goal of serving customers, satisfying
customers, and designing the most suitable production plan for customers adhering to "elaborate design,
excellent production, sincere service development concept, to get win-win cooperation and make progress
together with customers.
The company mainly produces complete sets of equipment for mines, cement, and building materials.
Its main products are: jaw crusher, impact crusher, cone crush
Customer visits
Packaging & Shipping

FAQ
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had
already build many mining projects in China & Overseas.
