Sfr-L Power Quality Improvement Reactive Power Compensation Capacitor Bank

Sfr-L Power Quality Improvement Reactive Power Compensation Capacitor Bank

US$100.00-230.00 1 Piece (MOQ)

Basic Info.

Model NO.
SFR-L
Packaging Type
Through Hole
Capacitance
50-100uf
Structure
Variable Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Electrolytic
Usage
Distribution Equipment
Tuning
Polystyrene Capacitor
Filter
Aluminum Electrolytic Capacitor
Color
White
Storage Temperature
25ºC~55ºC
Current Accuracy
≤0.5 %
Voltage Accuracy
≤0.5 %
Switching Mode
Zero Cross Switching
Working Temperature
-15ºC~45ºC
Altitude
<2000m
Standard
IEC 831-1, 2(2000)
Transport Package
10*5cm
Trademark
ELECNOVA
Origin
China
HS Code
9030899090
Production Capacity
20000PCS/Per Month

Product Description

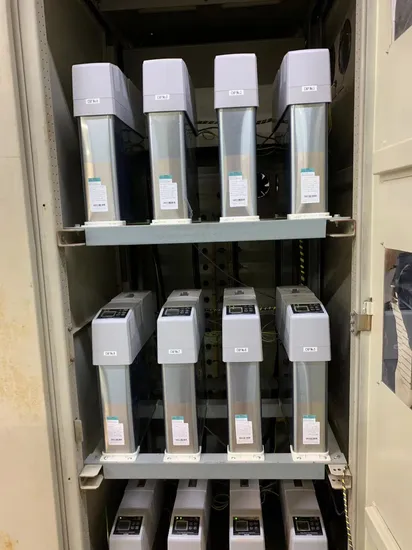

Three Phase Power Factor Correction Intelligent Capacitor 400V 100Kvar Smart Capacitor Bank
SFR-L is designed for the problem of harmonic and power factor in the sitation of sriousharmonic ollution in 0.4kV low voltage distribution network. It is used as anintegrated reactive power compensation module with functions of power factorenhancement, effective harmonic suppression, reduction of line loss and improve-ment of power quality.The components of dynamic harmonic suppression reactive compensation module include DSP digital processing circuit, highly integrated detection, control,protection, display unit, zero crossing switching module, discharge and air cooling unit, filter reactor, low-voltage filter power capacitor and function module operation Elecnstatus indicator circuit. This module is a new generation of dynamic reactivecompensation equipment for 0.4kV low voltage ditribution network which issuitable for frequent load change and high voltage qulfat rate requirementsiuation.t is a typical dynamic traking compensation intgation module withswitching time ≤20ms.
Function Technical parameter Feature (accuracy)
Measurement Current ≤0.5 %(within the range 20%~120% of rated current)
Voltage ≤0.5 %(within the range 50%~120% of rated voltage)
Power ≤1%
Power factor ±0.01
Switching mode Zero-crossing switch
Compensation operation Working voltage AC380V±20%, distortion ≤5%
Power consumption ≤5VA
Max. working current 1.35*In
Switching inrush current ≤*In
Host protection Over voltage 1.07*Un (can be set)
Under voltage 0.75*Un (can be set)
Harmonic exceeding 0%~100% (can be set)
Local protection Over current 0~100A (can be set)
Over temperature 20ºC~80ºC(can be set)
Unbalance 0%~200% (can be set)
Control setting Control parameter Target power factor, switching threshold, delay time etc.
Peripheral unit parameters Current transformer ratio
Network interface Pluggable data line, internal network protocol.
Mechanical installation Outline dimension W (wide)-71.5mm D (depth)-370mm, height is different due to the specific capacity of different specifications
Installation dimension Distance between fixing poles: W-85mm*D-315mm
Weight ≤6.5kg
Environment temperature Working temperature -25ºC~50ºC
Storage temperature -25ºC~55ºC
Altitude ≤2500m
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.


Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.


Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.


Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.


Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
