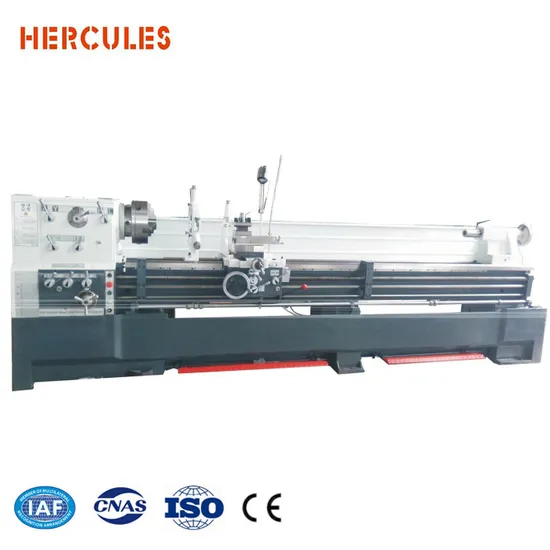

Horizontal metalworking Lathe Machine Cp6166L/Cp6266L, Universal Horizontal Gap Bed Type
| US$5,000.00-8,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CP6266L
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Bed Type
Normal/Gap
Table Size
750/1000/1500
Transport Package
Pallet
Specification
2020*1120*1820
Trademark
Hercules
Origin
China
HS Code
8458190000
Production Capacity
20000 Sets/Year
Product Description
Conventional Horizontal Gap LatheProduct Feature
1) The surface of the bedways is supersonic frequency handened.
2) The spindle system is high in rigtidy and accuracy.
3) Rapid feed structure is available on apron.
4) Clutch in headstcok makes the lathe start smoothly and brake quickly.
5) Gear grooves are available on bed to prevent tailstock from retreating.
Standard Accessories
3-jaw chuck; 4-jaw chuck; face plate;
Steady rest; Follow rest; 4-way tool postManual tailstock; Lubrication system; Coolant system;
Halogen work lamp; Spindle center, live center; Tool box and adjusting tools
Optional Accessories
Chuck cover; Tool post cover; Leadscrew cover;
Grinding attachment; Tapper attachment; Quick change tool post; Digital readout
| Specification | Unit | CP6½66B | CP6½66L |
| Swing over bed | mm | 660 | 660 |
| Swing over cross slide | mm | 430 | 430 |
| Distance between centers | mm | 1000,1500,2000,3000,4000,5000 (4000 & 5000 only for CP61 series) | |
| Swing in gap | mm | - 870 | - 870 |
| Width of gap | mm | 240 | 240 |
| Width of bed | mm | 390 | |
| Spindle nose | D8 | ||
| Spindle bore diameter | mm | 82 | 105 |
| Morse taper of spindle center | M6 | 1:20 | |
| Spindle speed | rpm | 9-1600 (24 steps) | 6-1120 (24 steps) |
| Max output torque of spindle | N.m | 1500 | |
| Range of longitudinal feed | mm/rev | 0.028-6.43 | 0.063-6.43 (0.0025-0.25in/rev) |
| Range of cross feed | mm/rev | 0.012-2.73 | 0.027-2.73 (0.00106-0.107in/rev) |
| Lead screw pitch | 12mm(metric system)/2 t.p.i(inch system) | ||
| Metric threads | mm | ||
| Inch system threads | t.p.i | ||
| Module threads | 0.5-112mm (42 kinds) | ||
| Diameter pitch threads | 56-1/4DP (45 kinds) | ||
| Cross slide travel | mm | 360 | 360 |
| Top slide travel | mm | 200 | 200 |
| Section specification of tool post | mm | 25×25 | |
| Longitudinal rapid traveling speed | m/min | 4.5 (50Hz) / 5.4 (60Hz) | |
| Transversal rapid traveling speed | m/min | 1.9 (50Hz) / 2.3 (60Hz) | |
| Morse taper of tailstock center | M5 | ||
| Max travel of tailstock quill | mm | 150 | |
| Tailstock quill diameter | mm | 75 | |
| Main motor | kw | 7.5 | 11 |
| Rapid travel motor | 250W/1360rpm | ||
| Coolant pump motor | 90W/25L/min | ||
Hercules Machinery Equipment Ltd. | |||
Pictures for reference only:
