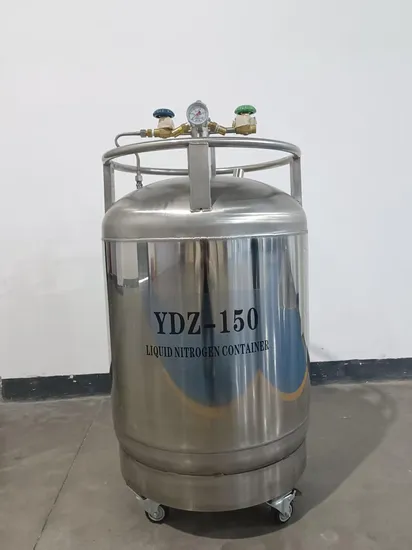

Self-Pressurized Liquid Nitrogen Tank of Scientific Research Test 150L

Self-Pressurized Liquid Nitrogen Tank of Scientific Research Test 150L

US$2,100.00-2,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
YDZ-150
Customized
Support Customization
Certification
ISO9001, CE
Tank Marerial
Metal Tank
Type
Low Temperature Storage & Transportation Equipment
Storage Objects
Liquid
Capacity(L)
150
Net Weight
91.5kg
Caliber
50mm
Static Evaporation Rate
1.3%
Gross Weight
207kg
Pressure Gauge Range(MPa)
0-0.25
Second Safety Valve Opening Pressure(MPa
0.15
Primary Safety Valve Opening Pressure(MP
0.09
Maximum Working Pressure(MPa)
0.09
Outer Diameter(mm)
656
Height(mm)
1230
Transport Package
Wooden and Carton Package
Specification
810*810*1460mm
Trademark
LN
Origin
Xinxiang, China
HS Code
7612909000
Production Capacity
7000

Product Description

Product Description
Self-pressurized liquid nitrogen tank is a kind of equipment used for liquid replenishment and turnover transportation of liquid nitrogen, liquid oxygen and liquid argon biological containers. It is made of high-quality stainless steel with a booster system that generates its own pressure for continuous drainage. The self-pressurized liquid nitrogen tank is composed of a control system and a tank body. The control system includes inlet/discharge valve, booster valve, vent valve, double safety valve, liquid level gauge and pressure gauge, etc. . Product Parameters
Model Parameter:
Model Cryostor 5 Cryostor 15 Cryostor 30 Cryostor 50 Cryostor 100 Cryostor 150 Cryostor 200 Cryostor 240 Cryostor 300 Cryostor 500
Cryostor 5A Cryostor 15A Cryostor 30A Cryostor 50A Cryostor 100A Cryostor 150A Cryostor 200A Cryostor 240A Cryostor 300A Cryostor500A
LN2 Capacity
(L)
5 15 30 50 100 150 200 240 300 500
StaticDaily
Evaporation (L
D)
0.15 0.38 0.75 1.0 1.3 2.0 2.4 2.9 3.3 5.5
Overall Height
(MM)
510 750 879 991 1185 1188 1265 1379 1459 1576
Outer Diameter
(MM)
329 404 454 506 606 706 758 758 857 1008
Weight Empty
(KG)
15 23 32 54 75 102 130 154 202 255
Standard Working Pressure(Mpa) 0.05
HighestWorking Pressure(Mpa) 0.09
PrimarySafety Valve Opening Pressure (Mpa) 0.099
SecondarySafety Valve Opening Pressure(Mpa) 0.15
Indication Range ofPressure Gauge(Mpa) 0~0.25
*A-typesupply tank is equipped with regulator system and solenoid valve.
*Revolutionary neck design ensures minimal evaporation loss rate;*Incorporates an impeccable safety structure;*Constructed with premium stainless steel tank;
*Equipped with smooth-gliding casters for effortless mobility;*Features a protective operating ring for enhanced safety;*Optional installation of a liquid level gauge available;
*Option to include a state-of-the-art low temperature regulator for precise control;
*Possibility to add a low temperature solenoid valve for advanced operations;*Option to integrate an automatic rehydration function for convenience; PRODUCT ADVANTAGES Optional Level Display:
Capable of digital signal remote transmission for seamless monitoring;
Regulator available as an option to ensure stable pressure; Solenoid valve can be added as an optional feature;
Inclusion of an automatic filling system is available as an option. Detailed Photos
Company Profile
Xinxiang LN Special Equipment Co., Ltd. "One-stop cryogenic solution with careful service" We have been focusing on the manufacturing of liquid nitrogen containers for 15 years,among the numerous suppliers, Xinxiang LN Liquid nitrogen container stands out with our unique core advantages:
1. **High quality and craftsmanship**
2. **Product Innovation**
3. **Comprehensive customer service** FAQ
Q1:Are you a manufacturer or a trading company?
A1:Manufacturer/factory
Q2:Are you sending an empty container or one with liquid nitrogen?
A2:You will receive an empty tank, you need to fill it with liquid nitrogen at your local gas station.
Q3:Can it be on an airplane?
A3:Yes, but you have to make sure it's empty.
Q4:Can I use it for any other liquid?
A4:It is not recommended that you do so. Special cryogenic liquids should be stored in their respective storage containers and should not be confused.
Q5:How long can Xinxiang LN Container be refrigerated?
A5:We have good quality. It all depends on which size you buy. If it's bigger, then it will stay longer. But we have higher quality than other usual
Q6:What are your payment terms?
A6:T/T 30% as deposit and 70% before delivery. Before you pay the balance, we will show you photos of the product and packaging.
Q7:What is your delivery time?
A7:Products below 50L are in stock, which usually takes 3-5 days. If the goods are not in stock, it will take 15-20 days, depending on the quantity.
Q8:What is your warranty?
A8:We provide one-year warranty, during which any quality problems that belong to us will be responsible for replacing new products.Please keep video evidence to initiate complaints.
