Two Nozzles Eight Weighing Scales Automatic High Efficiency Down Jacket Filling Machine
| US$500.00-50,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
R2-8
Feature
Automatic Weighing
Filling Valve Head
Doubie-Head
Filling Nozzle Size
16mm, 19mm, 25mm
Filling Material
50-90 Drying Down
Single Weighing Range
0.5-30g(Down)
Single Error
0-0.1g
Installation Size
6000*4000mm
Filling Pipes
2
Cycle Number
4
Accuracy
0.01g
Machine Weight
1080kg
Power
4.5kw
Daily Workload
12000-30000 Times
Type
Weighing-Type Filling Machine
Warranty
1 Year
Packaging
Film
Transport Package
Wooden Box
Specification
Installation size: 6000*4000mm
Trademark
Hexin
Origin
China
HS Code
8453800000
Production Capacity
100 Sets/Month
Product Description
Double Heads Eight Scales Automatic Down Filling MachineProduct Parameters
| Model | R2-8 |
| Filling nozzle size | 16mm, 19mm , 25mm |
| Filling material | 50-90 drying down |
| Single weighing range | 0.5-30g (down) |
| Single Error | 0-0.1g |
| Host Shape Size | 1800*1100*1900mm |
| Weighing Box Shape Size | 1400*800*1300mm |
| Installation Size | 6000*4000mm |
| Filling ports | 2 |
| Cycle number of single head | 4 |
| Accuracy class | 0.01g |
| Machine weight | 1080kg |
| Power | 4.5KW(AC220V) |
| Daily workload | 12000-30000 times |
| Automatic iron removal function | Support |
| More refunds and less supplements | More refunds and less supplements, accurate and saving down |
| Apportion big grams | Can fill a larger range |
| Fragment supplement function | One click immediate filling function after missed filling |
| One button down returning function | Change the gram weight and simplify the operation |
| Automatic constant humidity function | Automatically control the humidity of down inside the machine |
| USB data input | USB data input |
Electrical parts
| Name | Brand and Origin |
| PLC | Delta/Xinje |
| Sensor | HBM(Germany) |
| Regulated power supply | MW(Taiwan) |
| Controller | Delixi |
| Pneumatic parts | AirTAC |
| Pressure Regulating Valve | Japan SMC/AirTAC |

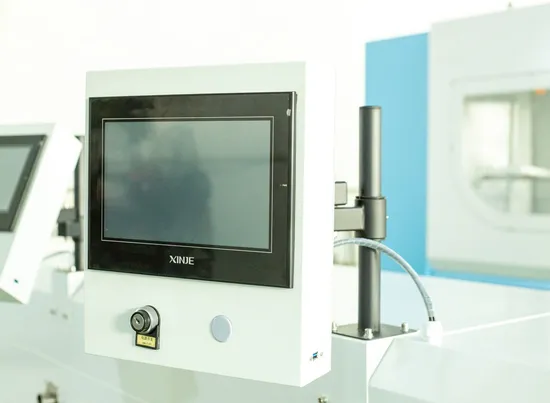

| Touch Screen | MCGS |
