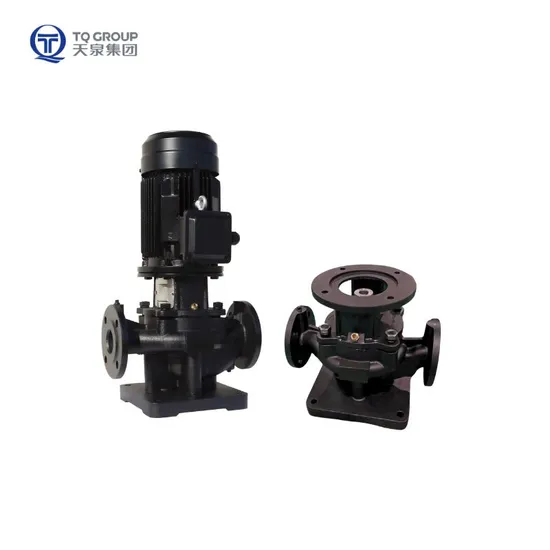

Tp (L) Series Vertical Inline Centrifugal Pump Water Pump Monoblock Pump for High Temperature 140c

Tp (L) Series Vertical Inline Centrifugal Pump Water Pump Monoblock Pump for High Temperature 140c

US$201.00-463.00 2 Pieces (MOQ)

Basic Info.

Model NO.
TP series/ 2960 r/min/DN32
Max.Capacity
300-400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Material
Iron Casting
Motor Voltage
380V-415V
Connection
Flange
Discharge/ Suction
DN32
Transport Package
Wooden
Trademark
tqpumps
Origin
China
HS Code
8413701010

Packaging & Delivery

Package Size
50.00cm * 60.00cm * 80.00cm
Package Gross Weight
150.000kg

Product Description

Product Description Model TP is the third generation single-stage circulation water pump designed for maximum 140ºC water and industrial fluids. Compared with the previous generation, the efficiency of the series is increased by 5% on average and TP has been the national energy-saving product certificated. The series have horizontal and vertical structures to meet different installation requirement. To achieve world-class quality, pump body and impeller are mechanically molded with coated sand, machined with four-axis CNC machining center and finished with electrophoresis. Big pump offer push-pull base for easy maintenance besides standard base
Application
Product Structural Drawing
Product Advantage
Hydraulic Coverage
Product Parameters
Type Capacity Head Speed Eff. Shaft Power Motor Power (NPSH)r Weight
Q H n η Pa PM
(m3/h) (L/s) (m) (r/min) (%) (kW) (kW) (m) (kg)
32TP(L)13-0.75/2 7.7 2.1 14.2 2960 48 0.62 0.75 2 43
9.4 2.6 13.7 51 0.69 2
11 3.1 13 54 0.72 2.2
12.1 3.4 12.4 55 0.74 3
13.2 3.7 11.7 56 0.75 3.2
32TP(L)17-1.1/2 8.4 2.3 18.8 2960 49.6 0.87 1.1 2 47
10.2 2.8 18 52.9 0.95 2
12 3.3 17 56.8 0.98 2.5
13.2 3.7 16.5 57.6 1.03 3.3
14.4 4 16 57.3 1.10 3.5
32TP(L)22-1.5/2 9.1 2.5 23.7 2960 50.8 1.16 1.5 2 51
11.1 3.1 23 53.9 1.29 2
13 3.6 22 57 1.37 3.1
14.3 4 21.2 58.2 1.42 3.6
15.6 4.3 20.4 58.3 1.49 3.8
32TP(L)27-2.2/2 9.8 2.7 29.5 2960 46.5 1.69 2.2 2 56
11.9 3.3 28.5 51.1 1.81 2.4
14 3.9 27 56.7 1.82 3.4
15.4 4.3 26 56.8 1.92 3.6
16.8 4.7 24.8 57 1.99 4
32TP(L)35-3/2 10.5 2.9 37.6 2960 47.4 2.27 3 2 65
12.8 3.6 36.8 51.8 2.48 2
15 4.2 35 56.8 2.52 3.3
16.5 4.6 34.2 57.2 2.69 4
18 5 32.7 57.5 2.79 4.4
32TP(L)35-4/2 12.6 3.5 38.5 2960 41 3.22 4 2 80
15.3 4.3 36.7 47 3.26 2
18 5 35 50 3.43 3.5
19.8 5.5 34 50.5 3.63 7.6
21.6 6 32.2 50.8 3.73 12
32TP(L)46-5.5/2 14 3.9 51 2960 42 4.63 5.5 2 92
17 4.7 49 45 5.04 2.3
20 5.6 46 51 4.92 7.5
22 6.1 44 51 5.17 12
24 6.7 41 49 5.47 15
Product Attributes
Attribute Attributes Value Optional
Installation Inlet Diameter (mm) DN32
Outlet Diameter (mm) DN32
Direction of rotation Clockwise from the motor to the pump
Entrance orientation level in
Exit orientation level out
Base form
Motor Number of motor phases 3
Rated voltage (V) 380
Power frequency (Hz) 50 60
Insulation class F
Protection class IP54 ip55
Cooling Method Air-cooled
Energy efficiency rating IE3 IE4/IE5A
