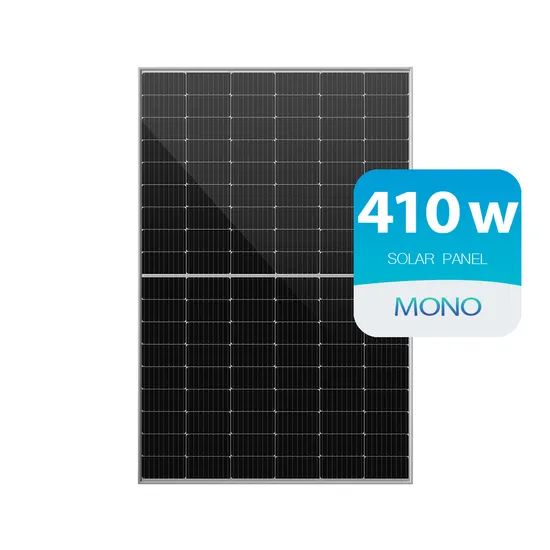

Gp Tiger Neo Monocrystalline Solar Panel Wholesale Price Solar Roof Tiles Installation 410W 420W 430W 108 Mono Cells Solar Panels

Gp Tiger Neo Monocrystalline Solar Panel Wholesale Price Solar Roof Tiles Installation 410W 420W 430W 108 Mono Cells Solar Panels

US$0.13
10,000-49,999 Watt
US$0.12
50,000-199,999 Watt
US$0.10
200,000+ Watt

Basic Info.

Model NO.
HTL410M10
Number of Cells
108PCS
Application
Light Industry
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Type
Half Cell
No. of Cells
108 Cells
Cell Size
182*91mm
Panel Efficiency
21.0%
Front Cover
3.2mm High Transmission, Low Iron Tempered Glass
Frame
Anodized Aluminium Alloy
Frame Color
Silvery
Backsheet Color
White or Transparent
Junction Box
IP65 Rated/ Pass The TUV Certificate
Maximum System Voltage
1500 VDC(IEC)
OEM Order
Acceptable
Package Way
36PCS in One Pallet, 936PCS in 40hq Container
Transport Package
Pallet/Wooden Box
Specification
1724*1134*30mm, 21.5kg
Trademark
Great Pack
Origin
Jiangsu, China
HS Code
8541430000
Production Capacity
2000 Piece/Day

Packaging & Delivery

Package Size
179.50cm * 113.00cm * 122.00cm
Package Gross Weight
756.000kg

Product Description

Product Description GP Tiger Neo Monocrystalline Solar Panel wholesale price Solar Roof Tiles Installation 410W 420W 430W 108 Mono Cells Solar Panels
Product Parameters
Electrical Specification (STC*)
Model HTL410M10 HTL415M10 HTL420M10 HTL425M10 HTL430M10
Maximum Power Pmax [W] 410 415 420 425 430
Maximum Power Vdtage Vmp [V] 31.59 31.8 32.01 32.2 32.4
Maximum Power Current lmp [A] 12.98 13.05 13.12 13.2 13.27
Open Circuit Voltage Voc [V] 37.45 37.67 37.89 38.09 38.29
Short Circuit Current Isc [A] 13.88 13.95 14.02 14.1 14.17
Module Efficiency [%] 21 21.3 21.5 21.8 22
Power Tolerance [W] 0-5
Max System Voltage 1500V DC(IEC)
Max Series Fuse Rating 20A
Operating Temperature -40 °C to + 85 °C
*Irradiance 1000W/m2, Module temperature 25°C, Air Mass 1.5
For More Details, Please Send Your Inquiry To GP Team. Thank You!
Detailed Photos Our packaging
Our projects
Company Profile Our factory
ANHUI GP NEW ENERGY CO., LTD
We, Anhui GP New Energy Co., Ltd (Great Pack) focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, and solar energy batteries, are the leading Lifepo4 battery supplier in China, who committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to our daily modern lives!
Our team has over 8 years of experience in the lithium battery field and supplies One Stop Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients worldwide. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.

Our workshop
Our Certifications
FAQ Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q2: What about the lead time?
A2: 10 Working days for 200kw requirements.
Q3: How can I make a payment?
A3: 100% TT, or we can accept 30% TT in advance and 70% TT upon goods being ready before shipment.
